Electrical cables are fundamental components in various applications, transmitting power and data. They come in diverse types, each designed for specific purposes. Common types include: * **THHN/THWN Cable:** Often used in residential and commercial wiring, these thermoplastic high heat-resistant nylon-coated (THHN) and wet-rated (THWN) cables are versatile for general power distribution. * **Romex Cable (NM-B):** A popular choice for indoor wiring in homes, Romex is a non-metallic sheathed cable containing multiple insulated conductors and a ground wire within a plastic jacket. * **Coaxial Cable:** Primarily used for transmitting high-frequency signals, such as for cable television and internet, it features a central conductor surrounded by an insulating layer, metallic shield, and outer jacket. * **Ethernet Cable (Cat5e, Cat6, etc.):** These twisted-pair cables are essential for networking, connecting computers, routers, and other devices to create local area networks (LANs). Different categories offer varying speeds and bandwidths. * **USB Cable:** Universal Serial Bus cables are widely used for connecting peripherals to computers, charging devices, and transferring data. They come in various types (Type-A, Type-B, Type-C, Micro, Mini) for different device compatibility. * **Speaker Cable:** Designed to carry audio signals from amplifiers to loudspeakers, these cables are typically unshielded and consist of two or more conductors. * **High-Voltage Cables:** Used in power transmission and distribution systems, these heavily insulated cables are designed to carry electricity at very high voltages over long distances. * **Fiber Optic Cable:** Unlike traditional electrical cables, fiber optic cables transmit data using light pulses through glass or plastic strands. They offer significantly higher bandwidth and immunity to electromagnetic interference, making them ideal for high-speed internet and telecommunications.

To determine the appropriate cable size for a specific application, several factors must be considered to ensure safety, efficiency, and compliance with electrical codes. First, identify the current-carrying capacity (ampacity) required by the load. This is often the most critical factor, as an undersized cable can overheat, leading to insulation damage, fire hazards, and voltage drops. Refer to relevant electrical codes and standards (such as the National Electrical Code in the US or IEC standards internationally) for tables that specify ampacity ratings for different conductor materials (copper, aluminum), insulation types, and ambient temperatures. Second, consider the voltage drop. Longer cable runs or higher currents can lead to a significant voltage drop along the cable, which can affect the performance of the connected equipment. Electrical codes typically specify maximum allowable voltage drops (e.g., 3% for feeders and branch circuits). Calculate the voltage drop using formulas that consider the cable's resistance, length, and current. If the calculated voltage drop exceeds the limit, a larger cable size may be necessary. Third, account for the installation method and environmental conditions. Cables installed in conduits, in bundles, or in areas with high ambient temperatures will have reduced ampacity due to less effective heat dissipation. Derating factors specified in electrical codes must be applied to the cable's nominal ampacity to compensate for these conditions. Finally, consider short-circuit current ratings. The cable must be able to withstand the maximum prospective short-circuit current that could flow through it without sustaining damage or causing a fire. This involves selecting a cable with sufficient short-circuit withstand capability and ensuring proper overcurrent protection devices are in place. By carefully evaluating these factors, you can select a cable size that safely and efficiently meets the demands of the application.

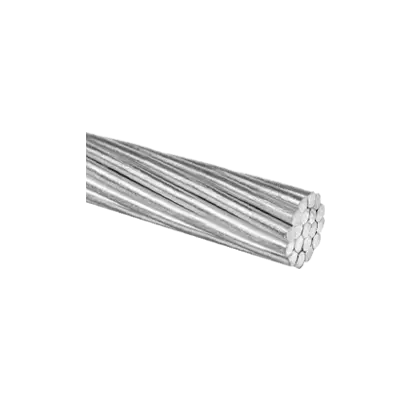

Copper and aluminum are both excellent electrical conductors, but they have distinct properties that make them suitable for different applications. Copper is a superior conductor of electricity due to its lower resistivity. This means it offers less resistance to the flow of electrons, resulting in less energy loss and heat generation. Copper is also more ductile and malleable, making it easier to work with, bend, and form into various shapes without breaking. Its strength and resistance to corrosion contribute to its durability and longevity in electrical systems. However, copper is denser and more expensive than aluminum. Aluminum, on the other hand, is lighter and significantly more affordable than copper, making it an attractive option for applications where weight and cost are critical, such as overhead power transmission lines. While aluminum has higher resistivity than copper, its lighter weight allows for longer spans between support structures, reducing installation costs. However, aluminum is more susceptible to oxidation, which can form a resistive layer and lead to connection issues if not properly managed. It also has a higher coefficient of thermal expansion, meaning it expands and contracts more with temperature changes, which can lead to loosening of connections over time if not designed correctly. In summary, copper is preferred for applications requiring high conductivity, durability, and compact size, while aluminum is chosen for its cost-effectiveness and lighter weight, especially in large-scale power distribution.

Insulation material significantly impacts cable performance by influencing its electrical, thermal, and mechanical properties. Electrically, a good insulator prevents current leakage, maintaining signal integrity and minimizing power loss. High dielectric strength is crucial to withstand voltage without breakdown. Thermally, insulation affects a cable's ability to dissipate heat. Materials with good thermal conductivity help prevent overheating, which can degrade performance and shorten cable lifespan. Mechanically, insulation provides protection against abrasion, moisture, and chemical exposure, ensuring the cable's durability and reliability in various environments. The choice of insulation directly affects parameters like capacitance, impedance, and signal attenuation, which are vital for efficient data and power transmission.

Installing electrical cables requires strict adherence to safety standards to prevent hazards like electric shock, fire, and equipment damage. Key standards include the National Electrical Code (NEC) in the United States, which outlines requirements for wiring methods, overcurrent protection, grounding, and bonding. Other regions have similar codes, such as BS 7671 in the UK (IET Wiring Regulations) or IEC standards internationally. General safety guidelines emphasize proper cable sizing to match current loads, preventing overheating. Cables must be adequately insulated and protected from physical damage, moisture, and corrosive environments. All connections should be secure and made within appropriate enclosures to avoid exposed live parts. Grounding and bonding systems are crucial for fault protection, ensuring that fault currents are safely directed away from people and equipment. Overcurrent protection devices, such as circuit breakers and fuses, must be correctly rated and installed to automatically disconnect power in case of overload or short circuit. During installation, personal protective equipment (PPE) like insulated gloves and safety glasses should be worn. Power should always be disconnected and verified de-energized before working on circuits. Proper tools, in good condition, are essential. It is highly recommended that electrical work be performed or supervised by qualified and licensed electricians who are familiar with the applicable codes and best practices. Regular inspections and maintenance of electrical systems are also vital to ensure ongoing safety.

Calculating the current-carrying capacity of a cable, also known as its ampacity, involves several factors to ensure safe and efficient operation. Key considerations include the conductor material (copper or aluminum), the conductor's cross-sectional area (gauge), the insulation type, the ambient temperature, and the installation method (e.g., in conduit, direct buried, or free air). The National Electrical Code (NEC) and other regional electrical codes provide tables that list the allowable ampacities for various cable types and sizes under standard conditions. These tables are a primary reference for electricians and engineers. However, derating factors must be applied in certain situations. For example, if multiple cables are bundled together, their heat dissipation is reduced, requiring a lower ampacity to prevent overheating. High ambient temperatures also necessitate derating, as the cable's ability to dissipate heat is diminished. The voltage drop along the cable is another critical factor. While not directly related to ampacity, excessive voltage drop can lead to inefficient power delivery and affect equipment performance. It's calculated based on the current, cable length, and conductor resistance. Proper cable sizing ensures that both ampacity limits and acceptable voltage drop are met, preventing damage to the cable, fire hazards, and maintaining system efficiency.

Please specify what you would like me to answer.

Environmental conditions significantly impact cable selection, influencing factors such as material degradation, signal integrity, and safety. Temperature is a primary concern; extreme heat can degrade insulation, leading to short circuits or reduced lifespan, while extreme cold can make cables brittle and prone to cracking. Therefore, cables must have an operating temperature range suitable for the environment. Moisture and humidity also pose risks. Water can corrode conductors, reduce insulation resistance, and facilitate electrical leakage. Cables designed for wet or damp locations often feature waterproof jackets and special insulation materials to prevent moisture ingress. UV radiation, prevalent in outdoor applications, can cause the outer jacket of a cable to become brittle, crack, and eventually expose the internal conductors. UV-resistant materials are essential for such scenarios. Chemical exposure, from oils, solvents, or corrosive gases, can also degrade cable materials, compromising their performance and safety. Cables in industrial settings or laboratories require jackets made from chemically resistant polymers. Mechanical stresses like abrasion, crushing, or repeated bending, common in dynamic applications, necessitate cables with robust jackets and flexible conductor designs to withstand wear and tear. Finally, electromagnetic interference (EMI) can affect signal transmission. In environments with high EMI, shielded cables are used to protect data integrity. Proper cable selection based on these environmental factors is crucial for ensuring reliability, longevity, and safety of electrical systems.

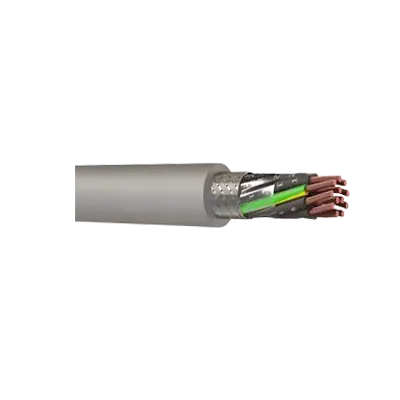

Shielding in electrical cables plays a crucial role in preventing electromagnetic interference (EMI) both from entering and exiting the cable. It typically involves a conductive layer, such as braided wire, foil, or a metallic tape, surrounding the insulated conductors. The primary function of shielding is to create a Faraday cage effect, which blocks external electromagnetic fields from inducing unwanted signals or noise onto the internal conductors. This is particularly important in environments with high levels of electromagnetic radiation, such as near power lines, motors, or other electronic equipment. Without shielding, these external interferences could corrupt data signals in communication cables or cause erratic behavior in control systems. Conversely, shielding also contains the electromagnetic fields generated by the current flowing through the cable's conductors. This prevents the cable itself from emitting EMI that could interfere with nearby sensitive electronic devices or other cables. This is vital in applications where multiple cables run in close proximity, such as in data centers, industrial control panels, or automotive wiring harnesses. Effective shielding also contributes to signal integrity by minimizing crosstalk, which is the unwanted coupling of signals between adjacent conductors within the same cable. By providing a low-impedance path to ground, shielding helps to dissipate induced currents and prevent signal degradation. In summary, shielding is essential for maintaining signal quality, ensuring data reliability, and preventing electromagnetic compatibility issues in a wide range of electrical and electronic systems.

Properly installing and maintaining electrical cables is crucial for safety and system longevity. Installation begins with selecting the correct cable type and gauge for the intended load and environment, adhering to local electrical codes. Cables should be routed carefully, avoiding sharp bends, excessive tension, and potential damage from friction or heat sources. Use appropriate conduits, trays, or clips to support and protect the cables. Terminations must be secure, using the correct connectors and tools to ensure good electrical contact and prevent loose connections that can lead to arcing and overheating. Labeling cables clearly at both ends aids in troubleshooting and future maintenance. Maintenance involves regular inspections for signs of wear, damage, or degradation, such as cracks, fraying, discoloration, or swelling. Check for loose connections at terminals and tighten as needed. Ensure proper ventilation around cables to prevent overheating, especially in enclosed spaces. Regularly clean cables and connections to remove dust and debris that can impede heat dissipation or lead to tracking. Test insulation resistance periodically, especially in older installations or harsh environments, to detect potential failures before they occur. Address any issues promptly, replacing damaged sections or entire cables if necessary. Adhering to a preventative maintenance schedule can significantly reduce the risk of electrical faults and ensure reliable operation.
