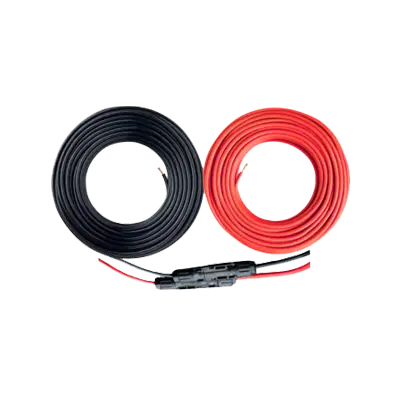

Solar PV cables are specialized electrical cables used in photovoltaic (PV) systems to interconnect solar panels and other components, such as inverters and combiner boxes. These cables are designed to withstand the unique environmental conditions and electrical requirements of solar power installations. Key characteristics of Solar PV cables include: 1. **UV Resistance**: They are made from materials that resist degradation from prolonged exposure to ultraviolet (UV) radiation, ensuring longevity and reliability in outdoor installations. 2. **Weather Resistance**: These cables are built to endure various weather conditions, including extreme temperatures, moisture, and humidity, without compromising performance. 3. **Insulation**: Solar PV cables have robust insulation to prevent electrical faults and ensure safety. The insulation is typically made from cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which provides excellent thermal and mechanical properties. 4. **Flame Retardancy**: They are designed to be flame-retardant to minimize fire risks, an essential safety feature for electrical installations. 5. **Low Smoke Emission**: In case of fire, these cables emit minimal smoke, reducing the risk of inhalation hazards. 6. **High Voltage and Current Capacity**: Solar PV cables are capable of handling the high voltages and currents generated by solar panels, ensuring efficient power transmission. 7. **Flexibility**: They are flexible to facilitate easy installation and routing, especially in complex or confined spaces. 8. **Standards Compliance**: These cables comply with international standards such as IEC 62930, ensuring they meet safety and performance criteria. Solar PV cables are crucial for the efficient and safe operation of solar power systems, providing reliable electrical connections and minimizing energy losses. Their specialized design ensures they can withstand the harsh conditions typical of solar installations, contributing to the overall durability and efficiency of the solar energy system.

Solar PV cables are specifically designed to connect solar panels and other photovoltaic system components. The materials used in these cables are chosen for their durability, flexibility, and resistance to environmental factors. 1. **Conductor Material**: - **Copper**: The most common conductor material due to its excellent electrical conductivity and flexibility. - **Tinned Copper**: Often used for its enhanced corrosion resistance, especially in outdoor and marine environments. - **Aluminum**: Sometimes used for cost efficiency, though less conductive than copper. 2. **Insulation Material**: - **Cross-linked Polyethylene (XLPE)**: Offers high thermal resistance, mechanical strength, and chemical resistance. - **Ethylene Propylene Rubber (EPR)**: Known for its flexibility and resistance to heat and weathering. - **Polyvinyl Chloride (PVC)**: Used for its cost-effectiveness and adequate insulation properties, though less durable than XLPE or EPR. 3. **Sheathing Material**: - **Thermoplastic Elastomers (TPE)**: Provides flexibility and resistance to UV radiation, ozone, and weathering. - **Polyolefin**: Offers good mechanical properties and resistance to environmental stress. - **Flame Retardant Materials**: Often added to enhance safety by reducing the risk of fire. 4. **Additional Features**: - **UV Stabilizers**: Incorporated to protect against degradation from sunlight exposure. - **Waterproofing Compounds**: Used to prevent moisture ingress, crucial for outdoor applications. - **Rodent Protection**: Some cables include materials or coatings to deter damage from animals. These materials ensure that solar PV cables can withstand harsh environmental conditions, maintain electrical performance, and provide a long service life, which is essential for the efficiency and reliability of solar power systems.

Solar PV cables differ from regular electrical cables in several key aspects: 1. **Material Composition**: Solar PV cables are typically made from tinned copper, which offers better resistance to corrosion and oxidation compared to the plain copper used in regular cables. This is crucial for outdoor applications where exposure to the elements is a factor. 2. **Insulation and Sheathing**: The insulation and sheathing of solar PV cables are made from cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which provide superior UV, ozone, and weather resistance. Regular electrical cables often use PVC insulation, which is less durable under prolonged sun exposure. 3. **Temperature Resistance**: Solar PV cables are designed to withstand a wider range of temperatures, typically from -40°C to +90°C or even higher, ensuring performance in extreme weather conditions. Regular cables usually have a narrower temperature range. 4. **Flexibility and Durability**: Solar PV cables are more flexible and durable, allowing them to withstand mechanical stress and movement due to wind or thermal expansion. This flexibility is less critical in regular electrical cables used indoors. 5. **Voltage Rating**: Solar PV cables are rated for higher DC voltages, often up to 1,500V, to accommodate the high voltage levels in solar power systems. Regular electrical cables are generally rated for lower AC voltages. 6. **Fire Resistance**: Solar PV cables are designed to be flame retardant and halogen-free, reducing the risk of toxic fumes in case of a fire. Regular cables may not have these properties. 7. **Standards and Certifications**: Solar PV cables must meet specific standards such as TÜV, UL, or IEC, which ensure their suitability for solar applications. Regular electrical cables follow different standards based on their intended use. These differences ensure that solar PV cables can reliably and safely transmit electricity in solar power systems, even under challenging environmental conditions.

Solar PV cables are available in various sizes and configurations to suit different photovoltaic system requirements. The sizes typically range from 2.5 mm² to 16 mm², with the most common sizes being 4 mm² and 6 mm². These sizes are chosen based on the current-carrying capacity and the distance between solar panels and inverters. Configurations of solar PV cables include: 1. **Single-core cables**: These are used for connecting individual solar panels to the combiner box or inverter. They are designed to withstand outdoor conditions, UV radiation, and temperature variations. 2. **Twin-core cables**: These cables have two conductors and are used for connecting solar panels in series or parallel configurations. They are often used in smaller installations. 3. **Multi-core cables**: These are used in more complex installations where multiple connections are required. They can contain several conductors within a single sheath. 4. **Flexible cables**: Designed for ease of installation, these cables can bend and flex without damage, making them suitable for dynamic environments. 5. **Armored cables**: These provide additional protection against mechanical damage and are used in installations where the cables are exposed to potential physical harm. Solar PV cables are typically made from copper or aluminum conductors, with copper being more common due to its superior conductivity. The insulation and sheathing materials are usually cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which provide excellent thermal and mechanical properties. The choice of cable size and configuration depends on factors such as the total system voltage, current, distance, and environmental conditions. Proper selection ensures efficiency, safety, and longevity of the solar power system.

Solar PV cables are designed to withstand harsh environmental conditions through several key features: 1. **Material Composition**: They are made from high-quality materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR), which provide excellent thermal, mechanical, and chemical resistance. 2. **UV Resistance**: The outer sheath of solar PV cables is UV-resistant, preventing degradation from prolonged exposure to sunlight. 3. **Temperature Tolerance**: These cables can operate efficiently in a wide temperature range, typically from -40°C to +90°C, ensuring performance in both hot and cold climates. 4. **Moisture and Water Resistance**: The insulation and sheathing materials are designed to resist moisture and water ingress, preventing damage from rain, snow, or humidity. 5. **Abrasion and Impact Resistance**: The robust construction of the cables provides resistance to physical damage from abrasion, impact, and mechanical stress. 6. **Chemical Resistance**: Solar PV cables are resistant to chemicals and oils, which is crucial for installations in industrial or polluted environments. 7. **Fire Retardant Properties**: Many solar PV cables are designed to be flame-retardant, reducing the risk of fire spread in case of an electrical fault. 8. **Ozone Resistance**: The materials used are resistant to ozone, which can cause cracking and degradation in lesser-quality cables. 9. **Flexibility**: Despite their robustness, these cables maintain flexibility, allowing for easy installation and routing in various configurations. 10. **Standards Compliance**: Solar PV cables comply with international standards such as IEC 62930, ensuring they meet rigorous safety and performance criteria. These features collectively ensure that solar PV cables can endure and function reliably in diverse and challenging environmental conditions.

1. **Cable Selection**: Choose cables specifically designed for solar PV systems, typically with UV resistance, weatherproofing, and appropriate voltage ratings. 2. **Conductor Material**: Use copper or aluminum conductors, with copper being preferred for its superior conductivity and flexibility. 3. **Insulation and Sheathing**: Ensure cables have double insulation and are sheathed with materials resistant to UV, ozone, and temperature variations. 4. **Voltage Rating**: Select cables with a voltage rating suitable for the system, commonly 600/1000V or 1500V for larger installations. 5. **Temperature Rating**: Ensure cables can withstand the temperature range of the installation environment, typically -40°C to +90°C. 6. **Cable Sizing**: Calculate the correct cable size based on current-carrying capacity, voltage drop, and short-circuit current ratings. 7. **Routing and Protection**: Route cables to minimize exposure to mechanical damage, using conduits or cable trays where necessary. Avoid sharp bends and ensure proper support. 8. **UV and Weather Protection**: Install cables in a manner that minimizes direct exposure to sunlight and weather, using UV-resistant materials and protective coverings. 9. **Earthing and Bonding**: Ensure proper earthing and bonding of cables to prevent electrical hazards and improve system safety. 10. **Connection and Termination**: Use appropriate connectors and terminals, ensuring secure and corrosion-resistant connections. 11. **Compliance and Standards**: Follow local electrical codes and standards, such as IEC 62930 or NEC Article 690, for installation practices. 12. **Testing and Inspection**: Conduct thorough testing and inspection post-installation to ensure system integrity and performance. 13. **Documentation**: Maintain detailed records of cable specifications, routing, and installation practices for future reference and maintenance.

Solar PV cables minimize power losses through several key features: 1. **Low Resistance Materials**: Solar PV cables are typically made from high-conductivity materials like copper or aluminum, which have low electrical resistance. This minimizes resistive losses (I²R losses) as electricity flows through the cables. 2. **Optimal Cable Sizing**: Proper sizing of cables is crucial. Larger cross-sectional areas reduce resistance, thus minimizing power losses. The cable size is chosen based on the current-carrying capacity and the distance over which power is transmitted. 3. **Shorter Cable Runs**: By minimizing the length of cable runs, the resistance is reduced, which in turn reduces power losses. Efficient system design ensures that the distance between solar panels, inverters, and other components is minimized. 4. **High-Quality Insulation**: Solar PV cables are equipped with high-quality insulation materials that prevent energy loss through leakage currents. This insulation also protects against environmental factors that could degrade the cable and increase resistance over time. 5. **Temperature Management**: Solar PV cables are designed to withstand high temperatures without significant increases in resistance. Proper thermal management ensures that cables do not overheat, which would otherwise increase resistive losses. 6. **UV and Weather Resistance**: Cables are often exposed to harsh environmental conditions. UV and weather-resistant coatings prevent degradation, which could lead to increased resistance and power losses. 7. **Low Inductance and Capacitance**: Solar PV cables are designed to have low inductance and capacitance, reducing reactive power losses, especially in AC systems. 8. **Proper Installation Practices**: Ensuring tight and secure connections reduces contact resistance at joints and terminals, further minimizing power losses. By incorporating these features, solar PV cables effectively reduce power losses, enhancing the overall efficiency of solar power systems.
