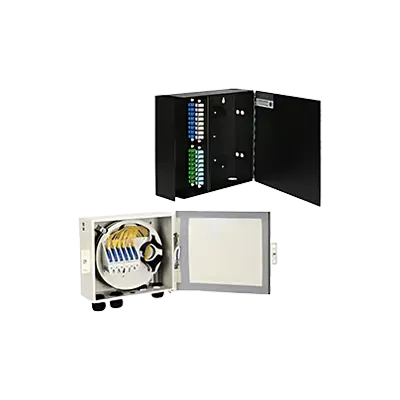

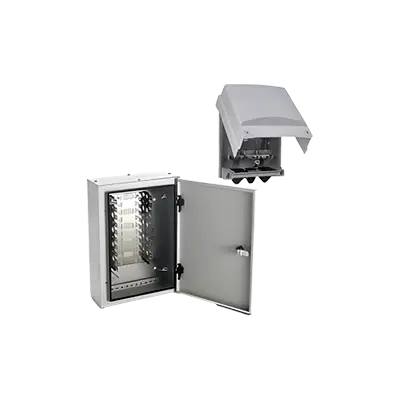

A wall box in ICT networks is a small wall-mounted enclosure that terminates, protects, and presents network cabling at the point of use or at an intermediate distribution point. It serves as a secure, organized interface between permanent cabling and patch cords or devices.

What it does:

• Termination and presentation: Houses keystone jacks (RJ45), fiber adapters, or punch-down blocks to terminate horizontal or backbone cables and present user outlets or patch points.
• Protection and compliance: Shields terminations from damage, dust, and tampering; maintains bend radius, strain relief, grounding, and fire-stop requirements per TIA-568/ISO/IEC 11801.
• Cable management: Provides slack storage, splice trays for fiber, labeling, and orderly routing to simplify moves, adds, and changes.
• Distribution: Acts as a telecom outlet in work areas, a consolidation point in open offices, or a small wall distribution node feeding multiple desks/zones.
• Transition/mediation: Can host media converters, PoE injectors, small switches, or splitters to transition copper/fiber types or extend services.
• Testing and maintenance: Offers an accessible test point for certification, fault isolation, and service demarcation within a building.
• Environmental/physical fit: Available recessed or surface-mount, with lockable doors, ventilation, and IP-rated options for industrial or public spaces.

In short, a wall box localizes network terminations and patching, ensuring organized, standards-compliant, serviceable connectivity between the structured cabling system and end-user equipment.

• Flush vs surface mount:

  • Flush: Best for finished interiors with wall cavities. Clean look, protected cabling. Requires box depth and more labor. Choose for permanent installs where aesthetics matter.
  • Surface: Best for concrete/brick, retrofits, rentals, or where you can’t open walls. Faster and flexible but more visible and prone to bumps. Use low-profile raceway for tidier runs.

• Single vs double gang:

  • Single: 1–4 ports typical. Fine for a few data/AV jacks. Use where space is tight.
  • Double: More ports and spacing, better bend radius for Cat6A/coax/HDMI, easier cable management, room to separate connectors. Choose when you need 3+ stiff cables, mixed media, or future growth.

• Keystone vs fixed patch:

  • Keystone: Modular, mix-and-match (RJ45, coax, HDMI, speaker), easy to replace/upgrade, ideal for evolving needs. Slightly higher part cost, but best for residential/SMB and future-proofing.
  • Fixed (pre-punched/one-piece): Durable, tamper-resistant, consistent look/labeling; good for schools, industrial, or standardized deployments. Less flexible to change connector types later.

• Quick picks:

  • Most homes/offices: Flush, single-gang, keystone (2–4 ports). Use double-gang if using Cat6A/HDMI/coax or planning expansion.
  • No wall cavity/retrofit: Surface-mount box with keystone inserts.
  • High-density or tamper-prone areas: Double-gang or multi-port fixed plates/panels.
  • Cable constraints: Ensure box depth ≥2.5 in for Cat6A; mind bend radius. Consider angled keystones for tight spaces.

• General: Keep low-voltage separate from mains, label both ends, stick to one wiring scheme (T568A or B), and leave slack for service.

• Prefer open-back low-voltage brackets (mud rings) over closed boxes; they preserve bend radius and space. If a box is required, choose extra-deep (3.5 in) or backless/partitioned LV boxes.

• Bend radius rules:

  • Cat6/6A UTP: minimum 4× cable OD at rest (typ. Cat6 ~0.25 in OD → 1.0 in radius; Cat6A ~0.29 in OD → ~1.2 in radius).
  • Fiber (tight-buffered): 10× OD at rest, 15× during pull; use slack management.

• Gang count (faceplate width):

  • 1–2 data ports (Cat6 or Cat6A): 1‑gang is fine.
  • 3–4 ports or mixed copper + fiber: 2‑gang recommended.
  • 5–8 ports: 3‑gang or two separate 2‑gangs.
  • For Cat6A (larger jacks) and fiber couplers, derate by one port per gang if using straight keystones.

• Depth/space guidance (if using boxes):

  • Cat6 (1–2 ports): 2.5 in depth minimum; 3.5 in preferred.
  • Cat6A (1–2 ports): 3.5 in depth strongly recommended.
  • 3–4 ports (any mix, incl. fiber): 3.5 in depth; choose 2‑gang to maintain bend radius.
  • Use angled keystone faceplates to reduce rear clearance needs.

• Fiber specifics:

  • Use dedicated fiber keystone/coupler modules; avoid tight bends behind the plate.
  • For copper + fiber in one location, use a 2‑gang with a divider or separate 1‑gangs to protect fiber and ease radius/slack.

• Conduit stubs (if used) to box/bracket:

  • 3/4 in for up to two Cat6; 1 in for two Cat6A or Cat6 + fiber; 1.25 in if planning growth. Maintain ≤40% fill and gentle sweeps.

• Leave 8–12 in service slack in the wall cavity; dress cables to one side to keep clear of device screws.

Yes—provided it follows common telecom standards:

• Keystone jacks: Compatible with standard keystone-format modules if the device uses standard keystone openings (typically 14.5 x 16.0 mm). Match the category and type: use Cat5e/Cat6/Cat6A keystone jacks with the same category rating; pair shielded (STP/FTP) components with shielded keystones; ensure 110/IDC punch-down compatibility and T568A/B wiring.

• Faceplates: Works with standard keystone faceplates that accept the same keystone modules. Ensure the faceplate’s port openings are standard keystone size and match the number of modules you intend to snap in. For low-voltage mounting, use standard single/double gang boxes or mud rings.

• PoE devices: Compatible if the cabling and terminations meet IEEE PoE specs. Use 100% copper conductors (no CCA), correct gauge (23–24 AWG for Cat6/Cat5e), and category rating suitable for the power/data rate. For PoE/PoE+ (802.3af/at) and PoE++ (802.3bt Type 3/4 up to 60–90W), ensure:

  • Cable and connectors are rated for the power level and temperature rise.
  • Total channel length ≤100 m and within insertion loss limits for the category.
  • Consistent shielding/grounding across all shielded components, if used.
  • Certified components (UL/ETL) and proper termination to minimize resistance.

Caveats:

• Some proprietary “mini” keystones or tool-less housings may not fit standard openings.
• Mixing categories will downgrade performance to the lowest-rated component.
• For high-power PoE, prefer larger gauge (23 AWG Cat6/Cat6A), bundling limits observed, and plenum/LSZH jackets as required by code.

• Plan per ANSI/TIA-568 and TIA-569: define telecom rooms, pathways, grounding (TIA-607), and labeling (TIA-606). Use rated components (CM/CMR/CMP; OFNR/OFNP).
• Pathways/support:
  • Conduit fill ≤40%; cable tray fill ≤50%.
  • Support horizontal cable at ≤1.5 m (5 ft) intervals; no cable weight on connectors.
  • Use J-hooks/ladder tray; avoid sharp edges; maintain ambient per cable spec.
• Pulling:
  • 4-pair copper tension ≤110 N (25 lbf); follow manufacturer for larger bundles/shielded.
  • Use lubricant as needed; pull steadily; avoid kinks/crush; cap fiber ends.
• Bend radius (after install / during pull):
  • UTP: ≥4× cable OD / ≥8× recommended during pulling.
  • Shielded F/UTP, S/FTP: typically ≥8× OD (check vendor).
  • Fiber indoor: ≥10× OD installed; ≥15× OD under tension; patch cords ≥5×.
  • Patch panels/racks: use managers; no acute bends at ports.
• Termination:
  • Maintain pair twist to within 13 mm (0.5 in) of the IDC.
  • Follow 568A or 568B consistently; certify links to TIA-568.2-D/.3-D.
• Separation from power/EMI:
  • Parallel runs: keep data ≥50 mm (2 in) from branch circuits in separate raceways; ≥127 mm (5 in) from open 120/240 V; ≥300 mm (12 in) from heavy power, motors, transformers, or fluorescent ballasts.
  • Cross power at 90°.
  • Prefer separate conduits/compartments; metallic barriers reduce required separation.
  • Avoid running near VFDs, elevator motors; use shielded cabling or fiber if necessary.
• Bundling/heat:
  • Minimize large bundles; comply with PoE derating and temperature rise; use open trays and spread cables.
• Slack/service loops:
  • Work-area outlet: ~0.3 m (1 ft) slack.
  • TR: ~3 m (10 ft) slack neatly managed.
• Fastening:
  • Use hook-and-loop; if using ties, loosely cinch; avoid crushing.
• Documentation/testing:
  • Label per TIA-606; as-built drawings.
  • Test: wiremap, length, NEXT/PSNEXT, return loss; OTDR and end-face inspection for fiber.

• Offices/commercial: IP20–IP30. Plenum CMP or LSZH where required. UTP fine; use STP/metal conduit near VFDs/EMI. Ground per NEC/IEC 60364; TIA-607 bonding. Main bonding to MGB; SPDs Type 2 at panels. Target earth ≤5 Ω.
• Industrial (dry): IP54. Wet/washdown: IP65–IP66; corrosive: IP66/NEMA 4X, 316 SS. Enclosures UL94 V-0. Use braided-shield cables, metallic conduit/tray bonding. Single-point or MGN bonding as designed. SPDs Type 1 (service) + Type 2 (subpanels). Earth ≤5 Ω.
• Outdoor: IP66–IP67 (IP68 if submerged), UV-rated, -40–+70 °C. Enclosures UL94 5VA. Lightning protection per IEC 62305/NFPA 780; Type 1 SPD at service. Ground ring or rods bonded; aim ≤5–10 Ω (≤5 Ω preferred).
• Hazardous (Ex): Enclosures IP66; certified ATEX/IECEx (Ex d/e/ib). Cables LSZH. Intrinsically safe barriers/galvanic isolators. 360° shield terminations to certified earth; maintain IS zoning; bonding jumpers as per entity parameters.
• Data centers/IT: IP20–IP30. CMP/LSZH. UTP Cat 6A typical; use F/UTP or S/FTP near EMI. Mesh bonding network per ANSI/TIA-607; equipotential bonding of racks/floor. SPDs on feeders/UPS. Avoid isolated grounds unless engineered. Earth ≤1–3 Ω where practical.
• Healthcare: Patient areas IPX4–IPX5. Materials UL94 V-0. Medical IT/isolated power where specified; equipotential bonding to patient equipotential point. RCD/GFCI 10–30 mA in wet zones. Leakage limits per IEC 60601.
• Residential/small buildings: IP20 indoor; bathrooms IP44 (IPX4) Zone 2; garages/outbuildings IP54. RCD/GFCI on outlets/wet circuits. Bond water/gas services. Earth ≤25 Ω (NEC) but improve to ≤5–10 Ω if feasible.
• Shielding practices: Use 360° shield clamps at entry; terminate both ends for high-frequency noise; single-end for low-frequency loop mitigation. Bond all metallic raceways/trays.
• Testing/documentation: Fall-of-potential or clamp-on tests annually; label earth bars/bonds/SPDs. Comply with NEC/CEC/IEC 60364, NFPA 70/75/76, IEEE 1100.

It depends on the box’s internal volume (stamped in cubic inches or cm³), conductor gauge, and what’s inside. Use NEC 314.16 box-fill rules:

• Volume per conductor: 18 AWG = 1.5 in³, 16 = 1.75, 14 = 2.0, 12 = 2.25, 10 = 2.5, 8 = 3.0.
• Count each insulated conductor that enters the box once.
• All equipment grounds together count as one conductor (of the largest gauge present).
• Each internal cable clamp counts as one conductor (largest gauge).
• Each device yoke (switch/receptacle) counts as two conductors (largest gauge connected to it).
• Pigtails that start and end in the same box do not count (except grounds as above).

Max conductors = floor(box volume ÷ allowance for largest gauge present).

Example: Single-gang 18 in³ plastic box, all 12 AWG, one receptacle, internal clamp. Allowance = 2.25 in³. Capacity units = 18/2.25 = 8. Counts: device = 2, grounds = 1, clamp = 1 → 4 units reserved. Remaining = 8 − 4 = 4 conductors entering (e.g., one 12/2 cable in and one 12/2 out).

Ports:

• Electrical (line-voltage): a single-gang box safely supports one device yoke (one duplex receptacle or one switch). A 2-gang supports two, etc.
• Low-voltage (data/AV): “ports” are determined by the wall plate/insert, not the box. A single-gang opening commonly accepts 1 Decora insert (which can hold 1–6 keystones) or a plate with 1–6+ keystone cutouts. Ensure bend radius and strain relief; there’s no NEC box-fill calculation for Class 2/communications, but don’t overcrowd to avoid damage.

To answer precisely, read the box’s stamped volume and apply the above with your wire size, devices, grounds, and clamps.
