A fiber optic splice closure is a sealed, protective enclosure used to join, protect, and manage optical fibers where cables are spliced or branched. It provides an environmental barrier and mechanical relief so splices maintain low loss and long-term reliability.

What it does:

• Protects splices from water, dust, chemicals, UV, temperature cycling, impact, and tensile/crush forces (often IP68-rated).
• Organizes fibers with trays that hold fusion or mechanical splice protectors, manage bend radius, and store slack.
• Seals cable entries with grommets/heat-shrink/gel to maintain internal integrity; many are re-enterable for future work.
• Provides strain relief for jackets and strength members; offers grounding/bonding for metallic elements.
• Enables network functions: straight-through splicing, branching/tapping (mid-span access), repair/restoration, and housing of passive components (e.g., splitters for FTTx).

Common types:

• Inline (cylindrical) and dome (vertical) closures.
• Deployment variants for aerial (pole/strand), underground (handhole/manhole), direct-buried, pedestal, or submarine use.

Key components/features:

• Multiple cable ports with interchangeable seals; expansion kits for added capacity.
• Splice trays (single fiber and ribbon/mass fusion compatible).
• Fiber organizers, identifiers, labeling.
• Pressure valves or gel systems; desiccants; locking latches.

Selection factors:

• Fiber count and tray capacity, re-entry needs, sealing method, environmental rating, installation method, compatibility with single-mode/multimode and ribbon fibers, and accessory support.

In short, it’s the field-hardened hub that ensures optical splices remain protected, organized, and serviceable across the network lifecycle.

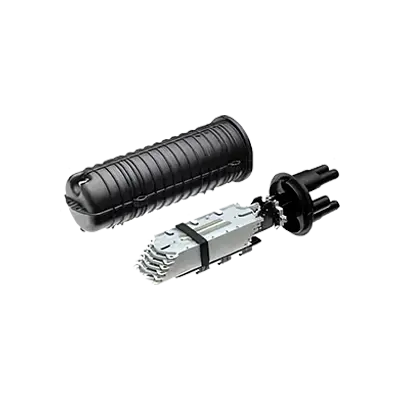

Dome (FOSC) closures:

• Shape/ports: Cylindrical “can” with base for multiple cable ports (often 4–16); supports branching. Vertical or horizontal mounting.
• Capacity: High splice tray count; good for feeder/distribution, splitter mounting, slack storage.
• Sealing: Mechanical gaskets or heat‑shrink; excellent water/pressure resistance (IP68, often >5 m head).
• Environments: Direct‑buried, underground handholes/manholes, aerial strand/pole, pedestal; robust against flooding, soil, and vibration.
• Access: Good for periodic re‑entry; trays stack vertically.
• Use cases: Distribution hubs, mid‑span access with multiple drop branches, areas needing growth, harsh environments.

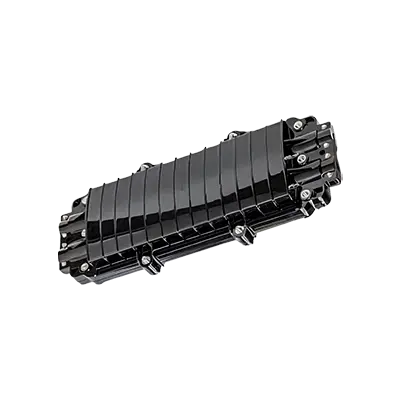

Inline closures:

• Shape/ports: Elongated “barrel” in line with cable; typically 2–6 ports; optimized for straight‑through or limited branch.
• Capacity: Moderate splice count; compact footprint and low wind profile.
• Sealing: Mechanical clamp/gel or heat‑shrink; very reliable but usually less roomy than domes.
• Environments: Aerial on messenger/ADSS, wall/pole mount, ducts; ideal where space/weight is constrained.
• Access: Re‑entry possible but working room is tighter; faster for straight-through splicing.
• Use cases: Long-haul/backbone joints, restoration joints, low-branch distribution, tight ducts or crowded aerial runs.

How to choose:

• Branching needed (many drops/splitters/slack): Dome. Minimal branching/straight-through: Inline.
• Environment harsh/wet/buried/flood-prone: Dome; standard aerial/duct with space limits: Inline.
• Capacity and future growth required: Dome. Compact, lightweight, low-visibility: Inline.
• Re-entry frequency moderate/high: Dome. One-time or infrequent access: Inline.
• Installation constraints (duct diameter, wind/ice loading): Inline. Hub/handhole/pedestal space: Dome.
• Sealing method preference: Mechanical/gel for re-entry; heat-shrink for lowest cost/maximum seal in stable builds.

Determine capacity by working backward from your build:

1. Count splices required:

• Splices = (fibers to be joined) + pigtails + splitters/WDM leads + mid‑span buffer tubes to be stored.
• For ribbon: splices = number of ribbons (6/12/24‑fiber) if mass‑fusion.

2. Choose tray type and per‑tray capacity:

• Single‑fiber trays: typically 6–12 splices/tray (common: 12). High‑density up to 24 with compact protectors.
• Ribbon trays: 6–24 ribbon splices/tray (e.g., 12×12‑fiber ribbons = 144 fibers).
• Mechanical splice protectors reduce tray count; heat‑shrink takes more space.

3. Calculate trays needed:

• Trays = ceil(total splices ÷ tray capacity). Add 1–2 trays for slack management, mid‑span storage, and future use.

4. Match to closure:

• Micro/tap closures: ~12–48 fibers, 1–4 trays.
• Distribution/FMx: 72–288 fibers, 4–12 trays.
• Backbone domes: 288–864+ fibers, 8–24 trays.
• High‑capacity ribbon domes: 1,152–1,728 fibers with mass‑fusion, 12–24 ribbon trays.
• Check port count, cable OD range, and seal type.

5. Derate and plan growth:

• Reserve 20–30% tray space for slack, rework, and environmental bend radius.
• Plan 25–50% spare capacity for future drops/splits.

Quick example:

• Two 144‑f cables spliced through with 24 drops (pigtails), single‑fiber fusion, 12‑splice trays.
• Splices ≈ 144 through + 24 drops = 168 → Trays = 168/12 = 14 → Add 2 spare = 16 trays.
• Select closure supporting ≥16 trays, ≥288 fibers, adequate ports, and mid‑span storage.

Always validate with vendor datasheets: max trays, splice count per tray, ribbon vs loose‑tube support, and accessories (splitter cassettes, express storage).

• Plan location: elevated if possible, away from flood paths/UV, with drip loops on all cables and adequate slack for future re-entry.
• Prepare cables: clean/dry; measure and mark entry length; remove outer sheath without nicking armor or fibers; trim water-blocking yarns to spec; leave strength members for anchoring; install grounding/bonding where required.
• Seal entry ports:
  • Select correct grommets/ports for cable OD; plug unused ports.
  • Apply butyl mastic if specified; seat grommets evenly.
  • For heat-shrink ports, slide adhesive-lined tubing on cable before insertion.
• Strain relief and bonding: anchor strength members to closure anchors; secure armor/braid; attach bond/ground wires.
• Splicing:
  • Route buffer tubes/fibers with proper bend radius; dress into splice trays; splice and protect (sleeves); balance slack; cap unused tubes.
  • For copper, insulate and stagger splices; use gel-filled or heat-shrink splice protectors.
• Desiccation: insert gel blocks or desiccant if specified; ensure water-blocking tapes are intact.
• Close the shell:
  • Clean and inspect O-rings/gaskets; lightly lubricate with approved grease; seat without twists.
  • Assemble per sequence; torque bolts/clamps to spec in a cross pattern; shrink entry sleeves until sealant uniformly flows.
• Test seal:
  • Vacuum/pressure test per spec (e.g., ±5–10 kPa for 5–10 min) with no decay; visual soap test for bubbles.
• Finalize: label closure and cables; secure to support/mount; ensure drip loops; recheck torque after cooling; document.
• Maintenance: periodic inspection after temperature cycles/storms; re-test if disturbed.

• Aerial (pole/strand/wall):

  • IP rating: IP66 minimum; IP67 preferred (driving rain and temporary immersion).
  • Impact: IK08–IK10 (IEC 62262).
  • Environmental: UV/solar (IEC 60068-2-5), salt fog (IEC 60068-2-11), wind‑driven rain (MIL‑STD‑810H 506.6), temperature/humidity cycling (IEC 60068‑2‑1/‑2/‑14/‑30), vibration/shock (IEC 60068‑2‑6/‑27), icing/freezing rain (IEC 60068‑2‑16).
  • Profiles: ETSI EN 300 019-2-4 Class 4.1E; Telcordia GR‑771-CORE with OSP aerial profile per GR‑3108‑CORE.

• Underground/duct/handhole/buried:

  • IP rating: IP68 (continuous immersion; specify depth/time, e.g., ≥1.5 m for ≥24–72 h).
  • Impact/crush: IK10 (IEC 62262) and relevant crush/impact per GR‑771.
  • Environmental: water immersion/silt/mud (IEC 60529 IPx8; IEC 60068‑2‑18), freeze‑thaw (IEC 60068‑2‑38/‑1/‑2), soil/chemical resistance (ASTM D543 or equivalent), mold/fungus (IEC 60068‑2‑10), rodent resistance as applicable.
  • Profiles: ETSI EN 300 019‑2‑4 Class 4.3; Telcordia GR‑771‑CORE with OSP buried/underground profiles per GR‑3108‑CORE.

• Pedestal/at‑grade cabinets:

  • IP rating: IP67 (temporary immersion during flooding) or IP68 in flood‑prone areas.
  • Impact: IK10 (IEC 62262).
  • Environmental: UV (IEC 60068‑2‑5), salt fog (if coastal; IEC 60068‑2‑11), wind‑driven rain (MIL‑STD‑810H 506.6), temperature/humidity cycling (IEC 60068‑2‑1/‑2/‑14/‑30).
  • Profiles: ETSI EN 300 019‑2‑4 Class 4.1E/4.1 for outdoor stationary use; Telcordia GR‑771‑CORE with OSP ground/pedestal profile per GR‑3108‑CORE.

General notes:

• IP per IEC 60529; select IP68 depth/duration and test plan from supplier.
• Verify compliance to Telcordia GR‑771‑CORE (fiber splice closures) and applicable GR‑3108‑CORE OSP environment class for the deployment.

Cable entries

• Use dedicated, sized ports with compression glands, heat‑shrink or gel/resin seals; clean, deburr, and prep sheath per spec. Stagger entry points to avoid crowding. Maintain drip loops and ID labels. Plug unused ports. Verify torque on glands and perform air/pressure test (if pressurizable).

Strain relief

• Anchor cable jackets with mechanical clamps at the entry bracket; capture central strength member in a dedicated retainer. Secure aramid yarns under clamp plates or with tie‑downs per manufacturer. Keep strain isolated from splice trays/pigtails; no tensile load on fibers. Use non‑abrasive ties with controlled tension.

Bend radius and routing

• Observe minimum bend radius: cable ≥10× OD (tight‑buffer often 10× static/15× dynamic), buffer tubes ≥10× OD, bare fibers ≥30 mm (or per spec). Use molded routing rings, guides, and radius limiters on trays. Route in smooth, one‑direction loops; avoid figure‑eights in tight spaces. Manage slack in trays or dedicated slack baskets; no crossing pressure points. Keep splice protectors in tray holders with gentle lead‑ins.

Grounding/bonding

• Bond all metallic elements (armor, messenger, strength members, closure hardware) using listed armor‑bond kits and continuity straps. Terminate to the closure ground lug, then to site ground with a green/yellow insulated conductor (typically 6 AWG Cu or per standard). Ensure low‑impedance path; remove coatings/paint at bond points; apply antioxidant on aluminum. Maintain electrical continuity across the closure; isolate dielectric fibers from ground. Connect to building/antenna earth bar using compression lugs or exothermic welds; verify resistance to ground meets local code. Label ground conductors and protect with strain relief and drip loop.

General

• Follow manufacturer torque values, environmental sealing steps, and test after closure (continuity, insulation, and, for fiber, OTDR/IL). Use desiccant if specified; re‑enter with new seals.

• Inspection (pre/post install):

  • Verify closure type matches environment (IP68/IEC 61300-2-23), cable count, and re-entry rating.
  • Check shell, latches, ports, gaskets, gel/sealant, desiccant; replace aged parts. Clean and dry all sealing surfaces.
  • Confirm strain-relief, strength member clamps, and proper bend radius/transition tubes. Ground metallic elements.
  • Validate splice trays, splice protectors, fiber management, and label plan; maintain minimum slack.

• Testing:

  • Visual inspection with microscope; clean connectors with lint-free wipes/99% IPA.
  • Light source/power meter: measure end-to-end loss vs. budget (both directions).
  • OTDR: use launch and tail fibers; test at 1310/1550 nm (and 1625/1650 nm for live-fiber safe monitoring). Set proper pulse width/averaging; perform bidirectional traces and average event loss/reflectance. Confirm splice loss and reflectance meet spec; check for ghosts/macrobends.
  • VFL for near-end continuity/identification; live fiber identifier before handling active fibers.

• Maintenance:

  • Schedule periodic visual checks (aerial: 6–12 months; buried/handhole: 12–24 months, or post-weather/works).
  • Inspect for water ingress, pressure loss (if pressurized), corrosion, pest/rodent damage, UV cracking, hardware torque, and cable sheath integrity.
  • Re-test critical spans with OTDR/power meter; compare to baseline traces. Update records, labels, GIS/as-built.
  • Replace desiccant, reseal ports, renew heat-shrink or gasket kits as required.

• Re-entry:

  • Allowed only if the closure is rated re-enterable. Mechanical/gasket/gel closures are re-enterable with new sealing kits; heat-shrink/thermo-molded types are generally one-time or require full reheat/new kits.
  • De-energize if possible; otherwise use live fiber identifier and out-of-band test wavelengths. Maintain cleanliness, protect splices, observe bend radius, and re-torque to spec. Record new test baselines after re-seal.
