An Optical Distribution Frame (ODF) is a centralized hardware unit used to terminate, protect, manage, and cross-connect fiber-optic cables in telecom, data center, and enterprise networks. It provides an organized interface between outside plant/backbone fibers and equipment ports.

Core functions:

• Termination: Securely anchors incoming fiber cables; connectors (e.g., LC, SC, ST) mate via adapter panels.
• Splicing: Houses splice trays for fusion/mechanical splices to pigtails or inter-facility fibers.
• Cross-connection: Enables flexible routing with patch cords between fibers, equipment, and circuits.
• Protection: Shields fibers from dust, strain, and bends; enforces bend-radius limits; offers grounding for metallic elements.
• Cable management: Guides, stores, and labels fibers and slack to maintain order and minimize loss.
• Testing/monitoring: Provides access points for OTDR and power tests without service disruption.

Common components:

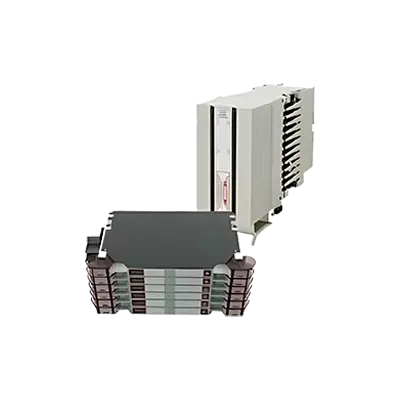

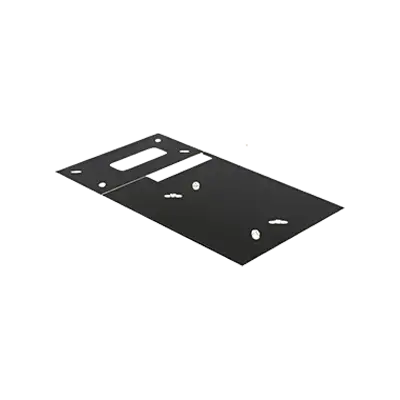

• Frame/chassis (floor-standing, rack-mount, or wall-mount)

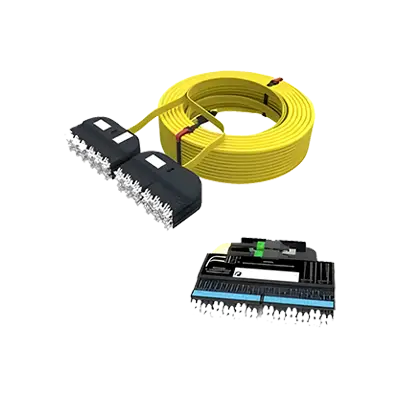

• Adapter/patch panels and cassettes

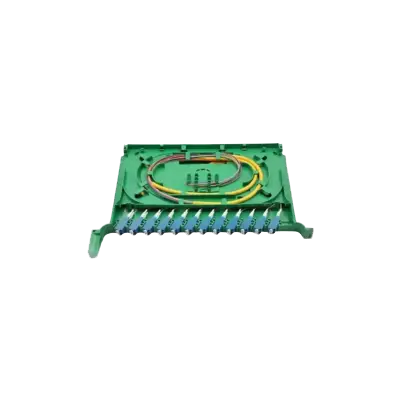

• Splice trays and organizers
• Cable entry glands, strain-relief, and routing rings
• Slack storage and bend-radius control modules
• Labeling/identification fields and doors

Use cases:

• Central offices/POPs, data centers, FTTx hubs, campus buildings, and MDR/IDF rooms.

Key considerations:

• Capacity (fiber count, density), connector type and polarity, single-mode vs multimode, front/back access, modularity, MPO/MTP support, airflow and security, standards compliance (TIA/ISO/IEC), and scalability.

By consolidating termination, protection, and cross-connection, the ODF improves reliability, simplifies changes, and reduces maintenance time and optical losses.

• Rack-mounted ODF

  • Description: 19-inch rack units (typically 1U–4U), fixed or sliding trays, modular cassettes/adapter panels, integrated splice trays and cable management.
  • Typical applications: Data centers (MDA/HDA/IDF), enterprise server rooms, telecom central offices, ISP POPs, FTTH headends, campus distribution racks.
  • When to choose: High-density terminations, scalable growth, standardized rack environments, centralized patching and cross-connects.
  • Pros/cons: Highest density per footprint, easy modular expansion; requires rack space and structured cabling discipline.

• Wall-mounted ODF

  • Description: Compact lockable enclosures for mounting on walls, with splice trays, pigtails, adapters; indoor or outdoor/ruggedized variants.
  • Typical applications: Small offices/remote sites, MDU/FTTB floors, corridor closets, surveillance and Wi‑Fi backhaul nodes, industrial cells, pole/cabinet deployments.
  • When to choose: Limited space, low-to-medium fiber counts, edge access points, last‑mile distribution.
  • Pros/cons: Space-saving, quick to install, secure local demarcation; lower capacity, less convenient for frequent re-patching.

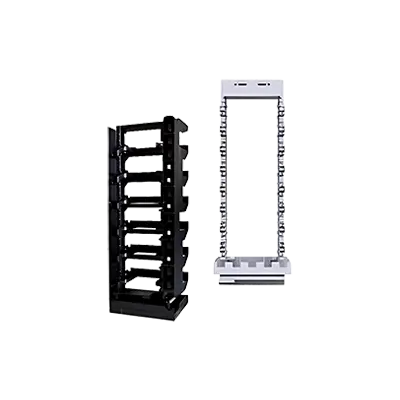

• Floor-standing ODF (free-standing frames/cabinets)

  • Description: Full-height bays or cabinets with large patch fields, vertical/horizontal managers, rear/front access, seismic options.
  • Typical applications: Carrier hotels, metro/core POPs, central offices, large campus hubs, hyperscale DC meet-me rooms, submarine landing stations, large FTTH distribution rooms.
  • When to choose: Very high fiber counts, extensive cross-connects, multiple operators, rigorous cable routing and labeling.
  • Pros/cons: Highest overall capacity, best cable management and serviceability; largest footprint, higher cost, room planning required.

• Define services and topology: point-to-point Ethernet, PON/FTTx, DWDM, campus backbone, or data center leaf–spine. This drives fiber type, polishing (UPC/APC), and density.
• Size fiber count:
  • Sum current trunks per route + spares (20–30%) + 3–5 year growth.
  • Account for redundancy (A/B paths) and fan-outs (breakouts).
  • Choose ODF height/footprint to fit with 30–50% empty capacity for expansion.
• Connector and adapter types:
  • Singlemode access/PON/RFoG: SC/APC or LC/APC preferred (low reflectance).
  • Enterprise/data center duplex links: LC/UPC standard.
  • High-density/multi-fiber: MPO/MTP 12/24 (UPC for MM SR; APC for SM DR/DR4); plan for polarity (A/B/C) and keying.
  • Emerging high-density duplex: CS or SN for 400G breakouts—ensure ODF has compatible cassettes.
• Modularity and migration:
  • Select ODF that supports mix-and-match cassettes: LC, SC, MPO, and splice trays.
  • Provide MPO-to-LC cassettes for 40/100/400G migration without re-terminating trunks.
• Cable and fiber type:
  • SMF (OS2) for long reach/backbone; MMF (OM4/OM5) for short-reach DC.
  • Match to transceiver roadmap (SR, LR, DR4, FR4).
• Loss and reflectance budget:
  • Target ≤0.2–0.35 dB per mated LC/SC pair; MPO 0.35–0.6 dB. Use APC where reflectance is critical (PON/DWDM).
• Physical design:
  • Front access if rear access is limited; ensure bend-radius control, slack storage, and hinged trays.
  • Density vs manageability: ≤72 LC per 1U for ease; use labeling, color codes (TIA-598), and port numbering.
• Standards and quality:
  • Comply with IEC 61754/61755, GR-326/1435; require test reports (IL/RL).
  • Ensure cleaning/inspection access and dust protection.
• Environment:
  • Choose ODF rated for central office, data center, or industrial (ingress, grounding).

• ODF (Optical Distribution Frame):

  • A large, structured framework for terminating, splicing, distributing, and managing high volumes of fibers in central offices, data centers, and POPs.
  • Provides cable strain relief, routing, bend-radius control, splice trays, splitter modules, adapters, labeling, and protection.
  • Supports both feeder and distribution sides, enabling organized cross-connection via patch cords.
  • Primarily manual reconfiguration; focuses on physical cable management and reliability at scale.

• Fiber Patch Panel:

  • A smaller, rack-mounted panel that presents fiber terminations (adapters) for quick patching.
  • Limited to termination and patching; may include simple cable management but usually no splicing capacity unless modular cassettes are used.
  • Lower port density and fewer accessories than an ODF; used at rack/row level.

• Optical Cross-Connect (OXC/OCC):

  • A switching element that interconnects optical paths, often at fiber, port, or wavelength level; can be manual (patch-cord based) or automated (MEMS, WSS/ROADM).
  • Enables dynamic, software-controlled provisioning, restoration, and grooming without manual repatching (in automated versions).
  • Focuses on switching/traffic engineering rather than cable management.

Key differences:

• Function: ODF = termination/splice/distribution; Patch Panel = simple termination/patching; OXC = switching (manual or automated, often wavelength-aware).
• Scale: ODF > Patch Panel in capacity and management; OXC scale varies but is a network element.
• Operations: ODF/Patch Panel require manual changes; OXC can be remotely and dynamically reconfigured.
• Use cases: ODF for central fiber plant organization; Patch Panel for rack-level connectivity; OXC for network-level path/wavelength switching.

• Site prep: Fix ODF to rack/floor, plumb and secure; bond/earth metallic parts; provide power/lighting; install firestop at penetrations.
• Cable entry/strain relief: Use glands/grommets; anchor strength members (aramid/central dielectric) to tie-offs; coil service loops; segregate incoming (feeder) and outgoing (distribution) paths.
• Bend radius: Maintain ≥10× cable OD for installed cable (≥15× during pull); jumpers typically ≥20× OD. Use radius limiters; avoid kinks and sharp edges.
• Splicing trays: Route buffer tubes to trays via protectors; one tube per tray where possible; fusion splice pigtails to fibers; protect with heat-shrink/micro sleeves; store splice sleeves in holders; dress 1.5–2 turns of slack per tray without crossing; cap unused sleeves/trays.
• Patching field: Populate adapter panels (LC/SC/FC as specified); map feeder-to-pigtail-to-port; keep dust caps on unused adapters; manage jumpers with horizontal/vertical managers; use Velcro (no zip ties); avoid overstacking; provide slack reels.
• Cable routing inside ODF: Use designated raceways for left/right and top/bottom paths; keep patch and tube routes separate; cross at 90° if unavoidable; color-code or sleeve by function.
• Labeling (TIA-606 or client standard): Label cabinet, frame, panel, tray, and port; label both ends of every cable with unique IDs; mark splice tray ID, fiber count, and tube color code; affix pathway labels and grounding IDs; place port maps inside door and in as-builts.
• Documentation: Update fiber schedule, splice matrix, and patch records; capture photos; record test results (OTDR, insertion loss) per fiber/port.
• Cleanliness and protection: Clean connectors (wet–dry method) before mating; keep dust caps; contain shards; use proper disposal for fiber scraps.
• QA and handover: Verify strain relief, bend radii, tray closure, door clearance; lock panels; deliver as-built drawings and labeling schema.

• Maintain accurate, up-to-date rack/port/fiber documentation, as-built drawings, and change logs; enforce change control.
• Use clear, durable labeling at shelf, panel, tray, and cord ends; follow standard color codes and polarity conventions.
• Plan capacity: reserve ports, define patching standards (connector type, mode, length), and avoid overfilling trays and ducts.
• Route jumpers on defined paths with radius guides; never exceed minimum bend radius; avoid tight bundles and door pinch points.
• Use Velcro for strain relief; avoid zip-ties that crush fibers; provide proper slack storage with measured service loops.
• Keep connectors clean: inspect with scope, dry-clean, then wet/dry if needed; always cap unused ports and cords.
• Standardize high-quality patch cords; separate single-mode/multimode and MPO/LC; verify polarity and keying before patching.
• Implement routine inspections: check labeling, routing, tension, dust, and panel torque; correct immediately.
• Test after every change with power meter/OLTS; use OTDR for fault isolation; baseline and trend losses.
• Schedule work in maintenance windows; pre-stage cords, labels, and tools; use method-of-procedure and peer review.
• Provide physical protection: doors, dust filters, controlled environment (temperature, humidity, cleanliness).
• Ensure proper grounding/bonding of frames; manage metallic strength members and armor safely.
• Use port blocks/dummies to protect unused adapters; avoid repeated mate/demate on the same ports.
• Train technicians on cleaning, inspection, handling, and ESD/light safety; restrict access to authorized staff.
• Keep critical spares (cords, adapters, cassettes, cleaning tools); standardize vendors to reduce variability.
• Monitor and audit regularly; reconcile records vs. physical; remediate “temporary” jumpers; enforce decommissioning and removal.

• TIA/EIA:

  • TIA-568.3-D: Optical fiber cabling, polarity, MPO/MTP, bend radius, patch panel practices.
  • TIA-604 (FOCIS): Connector interface dimensions (e.g., LC, SC, MPO).
  • TIA-526: Optical power/loss testing (OLTS/OTDR methods).
  • TIA-455 (FOTP): Environmental/mechanical test procedures.
  • TIA-606-B: Administration/labeling.
  • TIA-569-D: Pathways/spaces (routing/clearances).
  • TIA-607-D: Bonding/grounding.
  • TIA-942-B: Data center ODF layout/ratings (where applicable).
  • TIA-758-B: Outside plant fiber (if ODF is OSP interface).

• IEC:

  • IEC 61754: Connector family interfaces.
  • IEC 61755: Connector endface geometry (UPC/APC).
  • IEC 61753: Performance standards for passive components.
  • IEC 61300: Test/inspection methods (e.g., mating durability, vibration).
  • IEC 60794: Optical cable construction/performance.
  • IEC 61756-1: Fiber management systems (routing, bend control).
  • IEC 60297: 19-inch rack/mechanical dimensions.
  • IEC 60529/IEC 62262: IP/IK enclosure ratings (if required).
  • IEC 60825-1: Laser eye safety.

• ITU-T:

  • G.652/G.655/G.657: Fiber types and bend-insensitivity (select G.657.A1/A2 for tight ODF routing).
  • G.671: Connector and splice transmission characteristics.
  • G.650.3 (and G.650.1): Measurement methods (OTDR/attenuation).

How to ensure compliance:

• Specify fiber type (e.g., ITU-T G.657.A2) and cable standard (IEC 60794) in procurement.
• Require connector compliance to IEC 61754/61755 and TIA-604; specify polish (UPC/APC) and performance to IEC 61753.
• Use ODF/patch panels certified to IEC 61756-1 and mechanically to IEC 60297; enclosure IP/IK as needed.
• Design to TIA-568.3-D for polarity, MPO pinning, bend radius; pathways per TIA-569; bonding per TIA-607.
• Label/administer per TIA-606-B; maintain as-built documentation.
• Test with OLTS/OTDR per TIA-526 and ITU-T G.650.3; inspect endfaces to IEC 61300-3-35.
• Obtain vendor certificates of conformity, keep test reports, and perform periodic audits.
