• Electrical performance (TIA/EIA):

  • Cat5e: 100 MHz; designed for 10/100/1000BASE‑T. Typically supports 1 Gb/s to 100 m; 2.5/5 Gb/s possible on shorter/nice runs (distance- and noise‑dependent).
  • Cat6: 250 MHz; 1 Gb/s to 100 m; 10 Gb/s to ~37–55 m (depends on alien crosstalk and bundle size).
  • Cat6A: 500 MHz; 10 Gb/s to 100 m; engineered for alien crosstalk control.

• Panels/modules/cassettes differences:

  • Internal jack design and PCB layout tuned to category’s NEXT/return loss/ALIEN-XTK limits.
  • Cat6A hardware is physically larger and often offers better pair separation, more robust shielding options (U/UTP and F/UTP variants), and stricter termination specs.
  • Higher category components handle larger cable ODs (Cat6A often 7–8+ mm) and provide cable managers for bend radius.
  • Certification: Must be category‑rated end‑to‑end; channel performance is limited by the lowest‑rated component (panel, jack, patch cord, or horizontal cable).
  • PoE: Cat6/Cat6A jacks usually have better contact design and thermals; Cat6A is preferred for PoE++ (802.3bt) and dense bundles.

• Backward compatibility:

  • Higher categories support lower‑speed applications. Mixing categories downgrades to the lowest category.

• Which to choose:

  • New builds/future‑proofing, 10G, Wi‑Fi 6/6E/7 AP uplinks, high PoE loads, dense bundles, noisy environments: Cat6A panel/modules + Cat6A cable.
  • Cost‑sensitive, short runs (<45 m) needing some 10G, moderate PoE: Cat6 may suffice; certify if targeting 10G.
  • Legacy/voice or basic 1G only, minimal PoE, very tight budgets: Cat5e (not recommended for new installations).
  • Always match panel/module, keystone, patch cords, and horizontal cable to the same category; test to the target standard.

Use unshielded (UTP) panels and modules for most office/light commercial spaces. Modern Cat6A UTP supports 10G to 100 m, is cheaper, easier to install, and avoids grounding/bonding complexity.

Choose shielded (STP/FTP) panels/modules only when your environment has significant electromagnetic interference (EMI) or specific requirements:

• Cables run parallel and close to power feeds, VFD motors, generators, elevator machinery, welding gear, broadcast/radio equipment, MRI/medical imaging, or in industrial plants.
• High-density bundles with PoE+/PoE++ where EMI and alien crosstalk are concerns and you have proper bonding.
• Local EMC compliance mandates shielding.

If you choose shielded:

• Use a fully shielded channel end-to-end: shielded cable, jacks, patch panels, cords, couplers. Mixing shielded hardware with UTP cable (or vice versa) is non-compliant and can perform worse.
• Bond panels to the telecom grounding busbar per TIA-607/ISO bonding; ensure continuous shield continuity and low-impedance earth.
• Plan for slightly larger diameter cables and tighter termination tolerances; train installers; test for ANEXT/AFEXT if high-density.

If you lack reliable grounding, are spanning buildings with different earth potentials, or installers aren’t experienced with shielded termination, prefer UTP (use fiber between buildings).

Quick guide:

• Typical offices, classrooms, retail: UTP Cat6/Cat6A.
• Data centers near large power gear, factories, hospitals with imaging, broadcast studios: Shielded Cat6A (or higher) with proper bonding.
• PoE focus: prioritize larger gauge/temperature-rated cable; shielding is secondary to thermal design.

Yes. Modern copper patch panels and keystone modules that meet current cabling standards support PoE (802.3af), PoE+ (802.3at), and 4-pair PoE/PoE++ (802.3bt Type 3/4). They are passive pass‑through components; support depends on contact design, materials, and compliance testing.

For high‑power (802.3bt, up to ~90–100 W at PSE, ~0.96 A per pair), use:

• Category 6A-class hardware (jacks, panels) specifically rated for “high‑power PoE,”
• Components tested per IEC 60512‑99‑001/‑002 (mating under electrical load, resistance to arcing/spark erosion),
• Cabling and installation per ISO/IEC TR 29125 and TIA TSB‑184‑A (bundle sizes, ambient temperature, and heat‑rise limits).

Best practices for safety and performance:

• Prefer Cat6A 23‑AWG solid horizontal cabling; use PoE‑rated patch cords from reputable vendors.
• Manage heat: limit large cable bundles, observe temperature ratings, provide airflow, avoid overfill in trays.
• Minimize connect/disconnect under load; if repatching is routine, use connectors/jacks designed for “make‑first/break‑last” grounding and PoE arcing mitigation.
• Avoid damaged or corroded contacts; higher contact resistance increases heat.
• Shielding is optional (not required for PoE), but quality terminations are critical.
• Ensure overall system compliance (PSE/PD to IEEE 802.3; components with appropriate UL/IEC listings for the space, e.g., UL 2043 for plenum as needed).

Bottom line: Copper panels/modules that are Cat6A and explicitly rated/tested for high‑power PoE are safe for PoE/PoE+/4PPoE when installed per cabling guidelines and thermal management practices.

• Common port densities/form factors:

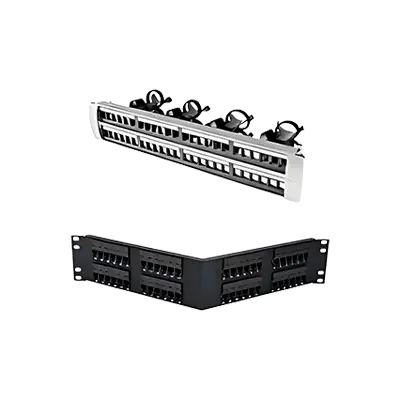

  • Rack-mount copper patch panels:
    • 1U: 12, 24, 48 ports (standard); some high-density 72–96 ports with mini-jacks.
    • 2U/4U: 48–96+ ports (larger spacing, easier cable management).
    • Flat or angled; shielded or unshielded; fixed or modular/unloaded.
  • Keystone panels (unloaded):
    • 1U: typically 12, 24, 48 keystone openings; some 0.5U/1.5U variants.
    • Accept RJ45 (Cat5e/6/6A), A/V (HDMI, coax), or fiber keystone modules.
  • Modular cassette chassis (fiber or copper):
    • 1U chassis commonly holds 3–5 cassettes; 2U/4U hold more.
    • Fiber cassettes: LC/SC breakout from MPO/MTP trunks (e.g., 12F, 24F, 72F per chassis, depending on density).
    • Copper cassettes exist (pre-terminated Cat6A), but less common.
  • Wall plates/surface boxes: 1–6+ keystone openings.

• Interchangeability:

  • Rack mounting: Most 19-inch panels/chassis comply with EIA-310 and fit any standard 19-inch rack/cabinet; 23-inch telecom variants require appropriate rails.
  • Keystone modules: Many follow the “standard” keystone footprint and can mix brands, but:
    • High-density/angled/shielded panels may require vendor-specific keystones or couplers.
    • Some vendors use proprietary mini-jacks that won’t fit generic openings.
  • Cassettes: Generally not cross-vendor interchangeable. Cassette footprints, latch mechanisms, polarity/pinning (for MPO/MTP), and faceplate layouts are vendor- or platform-specific.
  • Fiber connectivity: MPO vs MTP is mechanically compatible, but keying, gender (pinned/unpinned), and polarity (A/B/C) must match the system design.
  • Copper category/shielding: Match panel and jack category (Cat6A vs Cat6), and shielding type; mixing can reduce performance or break grounding continuity.

Bottom line: 24/48-port 1U panels, keystone panels, and cassette chassis are widely available; rack fit is standardized, but module/cassette compatibility is often ecosystem-specific.

• Termination methods:

  • Punch‑down (tooled): Conductors are seated into IDC slots using a punch‑down tool. Most fixed 19" patch panels and many keystone jacks use this.
  • Tool‑less: A hinged cap/lever or sliding mechanism presses conductors into IDC slots without a separate tool. Common on modern keystone jacks and some modular panels; faster and more consistent for field work.

• IDC standards used:

  • 110 IDC: Most common in North America and widely used globally on punch‑down patch panels and keystone jacks. Requires a 110 blade; supports T568A/B, AWG 22–24 solid (often 26 stranded with care).

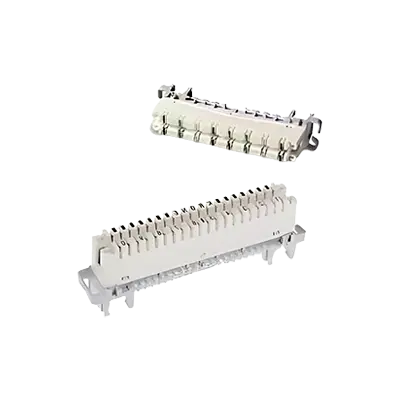

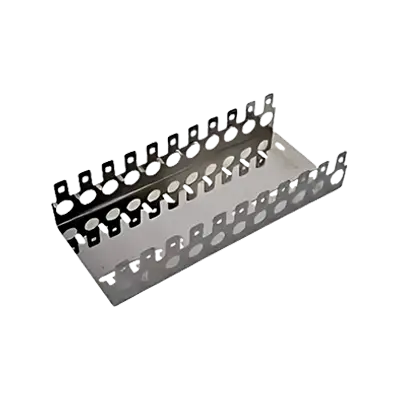

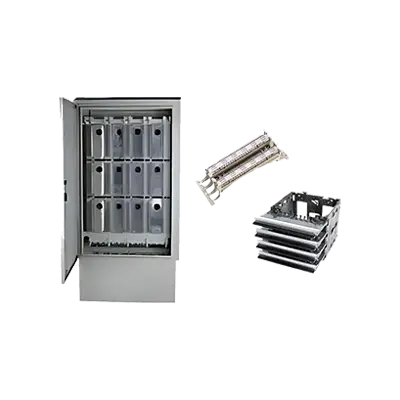

  • Krone (LSA‑PLUS): More common in Europe and telecom heritage systems. Uses Krone tool with scissor action; distinct contact geometry from 110.
  • Dual‑compatibility: Some jacks advertise “universal” or dual‑IDC that accept either 110 or Krone tools; verify vendor specs—contact geometry is designed for both, but they’re still not interchangeable across all products.

• Tool‑less IDC geometry:

  • Most tool‑less modules still use 110‑like IDC blades inside, actuated by the cap. A few use Krone‑style or proprietary LSA‑style contacts. Vendors rarely brand tool‑less as “110” even when equivalent; check datasheets.

• Typical by hardware:

  • Fixed patch panels: Predominantly 110 punch‑down; some European models are Krone; a minority are fully tool‑less.
  • Keystone‑based panels: Termination depends on the keystone—either 110 punch‑down or tool‑less; mix‑and‑match possible within the same panel frame.

• Practical notes:

  • Do not cross‑terminate (110 tool on Krone IDC or vice versa) unless rated dual‑IDC.
  • Follow T568A/B scheme and conductor order printed on the module.
  • Match cable category and conductor gauge to the jack’s rating for performance compliance.

Typically yes, if they’re the same cabling “category/class” and connector type. Examples:

• Copper: Cat6A/Class EA is backward compatible with Cat6/Class E and Cat5e/Class D over RJ45; performance is limited by the lowest-rated link component. Ensure compliance with ANSI/TIA-568.2-D and ISO/IEC 11801-1 + 11801-2 (bal. copper), and IEC 60603-7 (RJ45) family.
• Fiber: OM4 is backward compatible with OM3 (at OM3 reach); OS2 with OS1 typically interoperates if connectors/terminations match. Check compliance with ANSI/TIA-568.3-D, ISO/IEC 11801-1 + 11801-3 (optical), IEC 61754 (connector interfaces), IEC 60794/IEC 61300 (cable/component tests).

Key standards/compliance to look for:

• Structured cabling: ANSI/TIA-568 series, TIA-607-D (bonding/grounding), TIA-942 (data centers), ISO/IEC 11801 series, ISO/IEC 14763-2 (installation).
• Performance verification: ETL/Intertek “Verified to TIA/ISO” or UL Performance Verified; independent channel/component reports.
• Safety and fire ratings: UL Listed/Recognized, CMP/CMR/CM per NFPA 70/UL 444; plenum/risers; LSZH per IEC 60754/61034/60332.
• Component specifics: IEC 60603-7-x (Cat5e/6/6A jacks/plugs), IEC 60512 (contact durability), IEC 61156 (copper cable), IEC 60794 (fiber cable).
• Active/PoE: IEEE 802.3 (1G/10G/25G/40G), 802.3af/at/bt for PoE; safety UL/IEC 62368-1.
• EMC/EMI (for active gear): FCC/ICES/EN (Class A/B).
• Environmental/regulatory: CE (where applicable), UKCA, RoHS, REACH, WEEE.
• Quality system: ISO 9001 (manufacturing), ISO 14001 (environmental).

What matters most: third-party performance verification (ETL/UL) to TIA/ISO, correct category/class match, appropriate safety/fire rating for the space, IEEE Ethernet/PoE conformance for active products, and documented test reports for the exact part numbers.

• Establish a single, low-impedance bonding network: bond racks, trays, ladder racks, patch panels, and equipment to a common grounding bus (TGB/TMGB), using short, wide straps; clean paint/oxide at contact points.
• Use a meshed bonding network in data centers; interconnect racks with bonding jumpers and bond trays every 10–20 m; keep bonds straight, short, and mechanically secure.
• Terminate cable shields 360° at jacks/patch panels (no long pigtails). For high-frequency EMI, bond shield at both ends; for low-frequency loop concerns, use hybrid solutions (capacitive or one-end via drain) per system design.
• Maintain equipotential bonding to avoid ground loops; keep ground resistance and impedance low; bond to building earth; protect building entrance with surge protection/primary protectors.
• Keep data and power separated: avoid parallel runs with power, VFDs, UPS outputs, generators, ballasts. Cross at 90°. Use metallic raceways for power or dividers when sharing trays. Increase spacing with higher kVA sources.
• Preserve pair integrity: do not untwist more than 13 mm (0.5 in) at terminations; use compliant jacks and patch panels; certify links after install.
• Control bundling to reduce alien crosstalk and heat: use loose Velcro, not tight zip ties; limit bundle size; observe pathway fill (≤40–60%).
• Maintain bend radius (≥4× OD for UTP; ≥8× OD for shielded) and avoid kinks/compression.
• Use Cat6A or shielded cabling in high-density or noisy environments; stagger connectors and separate parallel patching where possible.
• Avoid coiling excess cable; use large-diameter service loops and proper managers; keep patch cords short and routed orthogonally.
• Label and dress cables consistently; segregate by service; keep slack in designated managers.
• Bond and ground Wi-Fi, antennas, racks, and cable trays; verify continuity and impedance; perform periodic inspections and corrective maintenance.
