UTP (Unshielded Twisted Pair)

• Pairs are only twisted; no metallic shielding.
• Lighter, thinner, more flexible; easier/cheaper to install and terminate.
• Widely used in offices/homes; excellent for most Ethernet up to Cat6/Cat6A when EMI is low.
• No grounding required; fewer issues with ground loops.
• Slightly more susceptible to external EMI and alien crosstalk in dense bundles.

STP (Shielded Twisted Pair)

• Adds foil/braid shielding around all pairs (F/UTP, S/UTP) and/or each pair (U/FTP, S/FTP).
• Better immunity to EMI/RFI and alien crosstalk; can improve SNR and margin on 10GBASE‑T, especially Cat6A.
• Thicker, stiffer, costlier; requires proper grounding (usually at one end) and shield continuity through jacks/patch panels.
• Improper termination can negate benefits or introduce noise.

When to use UTP

• Typical residential and office networks, open-ceiling or cable trays not adjacent to high-voltage.
• Runs separated from motors, fluorescent ballasts, VFDs, radio transmitters.
• Cost- and space-sensitive installs; frequent moves/adds/changes.
• PoE deployments within standard bundle/temperature limits.

When to use STP

• High-EMI environments: factories, hospitals (imaging), broadcast, data centers with dense cabling, near power feeders/VFDs.
• 10GBASE‑T Cat6A in very dense bundles or long parallel runs where alien crosstalk is a risk.
• Security-sensitive sites (reducing eavesdropping emissions).
• Mixed cabling paths with unavoidable proximity to noise sources.

Note: Use matched shielded connectors/patch panels and follow vendor grounding guidance; otherwise choose quality UTP and proper separation.

• Cat5e

  • Bandwidth: 100 MHz
  • Speed/Distance: 1 Gbps to 100 m; 2.5/5 Gbps at shorter runs (NBASE‑T)
  • Construction: Unshielded typically; thinner, flexible, cheapest
  • Use: Basic home/office; fine for 1 G and many Wi‑Fi AP uplinks (2.5G) on short runs

• Cat6

  • Bandwidth: 250 MHz
  • Speed/Distance: 1 Gbps to 100 m; 10 Gbps up to ~55 m (less in noisy bundles)
  • Construction: Tighter twists, separator spline; slightly thicker; better crosstalk control
  • Use: Good default for new runs; supports 2.5/5G well; limited 10G in short, clean paths

• Cat6a

  • Bandwidth: 500 MHz
  • Speed/Distance: 10 Gbps to 100 m
  • Construction: Thicker jacket, often shielded/foiled; larger bend radius; harder to terminate; best noise immunity
  • Use: Enterprise, high-density, future‑proofing; better for high‑power PoE (less heat rise)

Other notes

• All use RJ45 and are backward compatible.
• Higher categories cost more and are bulkier; check pathway fill and bend radius.
• For plenum/risers, buy the correct rated jacket (CMP/CMR).

Which to choose

• Tight budget, existing short runs, ≤1 Gbps: Cat5e is fine.
• Most home/SMB new installs, expecting 1–2.5/5 Gbps and maybe short‑run 10G: Cat6.
• New construction or you want guaranteed 10G to 100 m, dense bundles, or high PoE: Cat6a.
• If your ISP or switches support 2.5G/5G now and runs are short, Cat5e may suffice; but for longevity, pull Cat6 or Cat6a.

• General max on twisted pair: 100 m channel (≈90 m permanent link + up to 10 m patch cords) for most BASE-T Ethernet.
• By speed and cable:
  • 10/100 Mbps (10BASE-T/100BASE-TX): 100 m on Cat5 or better.
  • 1 Gbps (1000BASE-T): 100 m on Cat5e or better.
  • 2.5/5 Gbps (2.5G/5GBASE-T, “NBASE-T”): 100 m on Cat5e/Cat6 (quality-dependent).
  • 10 Gbps (10GBASE-T):
    • 100 m on Cat6a (shielded or unshielded).
    • 37–55 m on Cat6 (depends on alien crosstalk; typical guidance ≤55 m).
  • 25/40 Gbps (25G/40GBASE-T on Cat8): up to 30 m (data center short-reach).
• How length affects speed:
  • Within spec distances with proper cabling: full rated speed and reliability.
  • Approaching/exceeding limits increases attenuation and crosstalk, causing errors and retransmissions; links may auto-negotiate down (e.g., 10G→5G/2.5G/1G) or drop intermittently.
  • Using cable below the category needed for the target speed (e.g., 10G on long Cat6) forces shorter max length or reduced speed.
  • Patch panels, connectors, and bundling add loss/crosstalk; the 100 m limit assumes compliant components and installation.
• Summary:
  • Most office/home copper runs: plan for 100 m max for up to 1G (Cat5e) and 10G with Cat6a.
  • For Cat6 at 10G, keep ≤55 m.
  • For 25/40G over twisted pair (Cat8), keep ≤30 m.

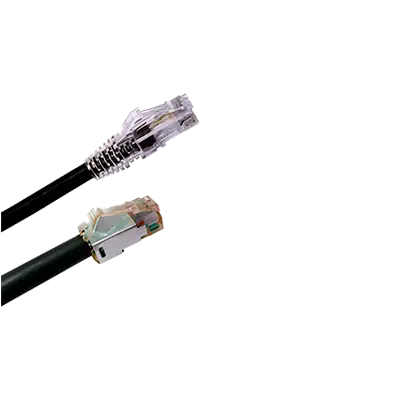

Connector: 8P8C modular plug/jack (commonly miscalled “RJ45”) used with balanced twisted-pair cables (Cat5e/Cat6/Cat6A, etc.). Pins are numbered 1–8 (with contacts facing you, latch away, left→right).

Pairs and Ethernet use:

• 10/100BASE‑TX: uses pairs on pins 1–2 (Tx) and 3–6 (Rx) for MDI; switches/hubs are MDI‑X (roles swapped). Auto‑MDI/MDI‑X usually removes need for crossover.
• 1000BASE‑T and above: use all four pairs bidirectionally (pins 1–2, 3–6, 4–5, 7–8).
• PoE: may feed on data pairs (1–2, 3–6) and/or spare pairs (4–5, 7–8), depending on mode; both T568A/B support PoE.

T568A vs T568B (TIA/EIA wiring standards):

• They define which color-coded pair goes to which pins. Electrical performance is identical; the difference is pair-to-pin assignment for the green and orange pairs.
• T568A pinout (1→8): white/green, green, white/orange, blue, white/blue, orange, white/brown, brown.
• T568B pinout (1→8): white/orange, orange, white/green, blue, white/blue, green, white/brown, brown.
• T568A puts Pair 3 (green) on pins 1–2 and Pair 2 (orange) on 3–6; T568B swaps those two pairs.

Cable types:

• Straight‑through: same standard on both ends (A–A or B–B). Most common for device-to-switch links.
• Crossover: A on one end, B on the other (or explicit pair cross), formerly used for like‑to‑like links without Auto‑MDI/MDI‑X.

Best practice:

• Pick one standard (often T568B in North America; T568A is preferred in some specs and government installs) and use it consistently within a site.

Shielding provides a low-impedance path for unwanted fields; construction determines how well it works and how much crosstalk is prevented.

• Shield type and frequency: Foil shields (100% coverage) excel at high-frequency electric-field (RFI) suppression; braids (60–95% coverage) provide lower transfer impedance and better low-frequency magnetic-field (EMI) performance; combinations (foil+braid) broaden bandwidth.
• Coverage and overlap: Higher braid coverage and double-braid reduce leakage. Longitudinally overlapped foils need sufficient overlap; welded/laminated foils are best.
• Individual vs overall shields: Individually shielded pairs (S/FTP, F/FTP) greatly reduce pair-to-pair and alien crosstalk; an overall shield controls external EMI and common-mode noise.
• Termination and bonding: 360° shield termination to chassis at connectors preserves shielding; pigtails add inductance and degrade high-frequency effectiveness. Bond both ends for HF EMI control; manage ground loops with proper bonding and equipotential planes.
• Drain wires: Aid termination but can raise inductance if used as pigtails; keep short and clamped under the shield.
• Pair geometry: Tight, consistent twist and varied lay lengths minimize near-/far-end crosstalk by averaging coupling and maintaining balance. Conductor symmetry and tight tolerance reduce mode conversion.
• Separators/fillers: Splines, cross-fillers, and spacing reduce capacitive coupling and alien crosstalk; maintain roundness for stable impedance.
• Dielectric and jacket: Low-permittivity, uniform dielectrics and stable constructions keep impedance consistent, limiting reflections that convert to common-mode noise.
• Connectors and length of unshielded leads: Maintain shield and pair integrity through connectors; minimize untwisted/unscreened stubs.
• Environment: Use double-shield or individual pair shields near strong RF, motors, VFDs. Keep separation from aggressors; route away from parallel power runs.

Yes. Standard Ethernet twisted-pair cabling can carry Power over Ethernet (PoE) if the components and installation meet PoE specs.

Requirements:

• Standards: IEEE 802.3af (PoE, up to 15.4 W PSE/12.95 W PD), 802.3at (PoE+, 30 W/25.5 W), 802.3bt Type 3 (60 W/51 W), Type 4 (90–100 W/71–90 W). Voltage ~44–57 VDC (nominal 48 V). Backward compatible.
• Cabling: TIA-568/ISO/IEC compliant balanced twisted pair; Cat5e or better recommended (Cat6/6A preferred for 802.3bt and long runs/bundles). Solid copper (no CCA), correct pair terminations, maintain twists to within spec, total channel length ≤100 m.
• Pairs used:
  • 10/100BASE-TX: Mode A (data pairs 1–2, 3–6) or Mode B (spare pairs 4–5, 7–8).
  • 1000BASE-T/2.5G/5G/10G: all four pairs; power is common-mode (phantom power). 802.3bt can use 2 or 4 pairs (4-pair recommended for higher power/lower loss).
• Hardware: PoE-capable PSE (switch or midspan injector) and PoE PD (device) with IEEE detection (25 kΩ signature) and classification. Avoid “passive PoE” unless device explicitly supports the exact voltage/pinout.
• Connectors: 8P8C (RJ45) jacks/plugs rated for PoE with make-first/break-last contacts to reduce arcing (IEC 60512-99-001). Avoid hot-plugging cycles under load where possible.
• Installation: Observe bundle sizing/derating (TSB-184-A/ISO guidance) to manage heat; consider Cat6A for large bundles/high power. Keep cables within temperature ratings, avoid tight bends and kinks. Shielding/grounding as needed for EMI; surge protection for outdoor runs.
• Safety: SELV, Limited Power Source; isolation per Ethernet standards.

In short, use standards-compliant copper cabling (preferably Cat5e+), PoE-capable PSE/PD, proper connectors, and follow length, bundling, and thermal guidelines.

• Planning/handling

  • Use listed cable (CM/CMR/CMP) appropriate to space; follow TIA‑568.2‑D/ISO 11801.
  • Max channel 100 m (90 m permanent link + 10 m patch). Leave 300 mm slack at outlets, 1 m at racks.
  • Maintain separation from EMI: ≥50 mm from power in parallel, cross at 90°, avoid ballasts, VFDs, motors.
  • Pulling tension: do not exceed ~25 lbf (110 N) for 4‑pair UTP (check datasheet). Avoid kinks/crushing; use Velcro, not tight zip ties.
  • Temperature/humidity within manufacturer limits during install.

• Bend radius

  • U/UTP: ≥4× cable OD (no tension).
  • F/UTP, S/FTP: ≥8× cable OD.
  • During pulling/under tension: increase radius (follow datasheet, typically double).
  • Maintain radius at racks, patch panels, and device entries; no sharp bends behind faceplates.

• Termination

  • Use same pinout end‑to‑end (TIA‑568A or ‑B).
  • Maintain pair twist to within 13 mm (0.5 in) of IDC; minimal jacket removal.
  • For shielded: bond/ground per manufacturer; use compatible jacks/panels.
  • Cable management: dress bundles loosely; observe fill ratios in trays/conduits.

• Testing (verification vs certification)

  • Set tester NVP accurately; select correct test limit (Permanent Link vs Channel).
  • Test each link for: wiremap, length, insertion loss, return loss, NEXT/PSNEXT, ACR‑F/PS‑ACR‑F, delay/skew, DC resistance/unbalance.
  • Use appropriate accuracy level: Cat 6A requires Level IIIe/IV testers (ANSI/TIA‑1152‑A, IEC 61935‑1).
  • Calibrate adapters, use manufacturer‑approved reference cords; avoid contaminated contacts.

• Certification/documentation

  • Certify all permanent links; save PDF/native reports with IDs, limits, margins, tester model, date.
  • Label per TIA‑606‑C; maintain as‑built drawings and test archives.

• Troubleshooting/remediation

  • Fix failures by re‑terminating, reducing untwist, correcting split pairs, improving bend radius/strain relief, replacing damaged segments/patch cords.
