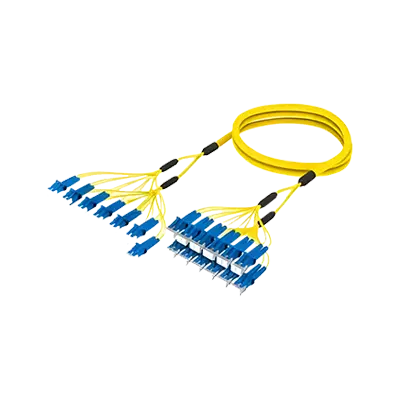

A fiber optic cable assembly is a pre-terminated optical cable built for plug‑and‑play data or signal transmission. It includes one or more glass or plastic fibers (core with lower‑index cladding), protective buffer/coating, strength members (e.g., aramid yarn), outer jacket, and factory‑installed connectors (e.g., LC, SC, ST, FC, MPO/MTP) with polished ceramic ferrules. Common forms include patch cords (simplex/duplex), pigtails (one ended), breakout/fanout cables, trunk cables, and ruggedized assemblies. Key specs include fiber type (single‑mode OS1/OS2, multimode OM3/OM4/OM5), connector type and polish (UPC/APC), fiber count, polarity, insertion loss, and return loss.

It works by guiding light pulses through the fiber core via total internal reflection at the core–cladding boundary. Transceivers convert electrical signals to specific wavelengths of light (typically 850 nm for multimode; 1310/1550 nm for single‑mode), launch them into the fiber, and a receiver converts the arriving light back to electrical signals. Single‑mode fibers have a very small core (~9 µm) for long‑distance, high‑bandwidth links with low dispersion; multimode fibers have larger cores (50/62.5 µm) for shorter distances and lower‑cost optics. The connectors precisely align fiber endfaces to minimize loss and reflections; polish type (UPC vs APC) affects return loss. The assembly’s strength members, strain relief, and bend‑insensitive fiber help maintain performance by protecting against tension, microbends, and tight radii. Proper polarity and cleanliness of connector endfaces are critical to reliable operation.

• Core/cladding: Single-mode (SMF) ~8–10 µm core; Multimode (MMF) 50/62.5 µm core (125 µm cladding both).
• Light/lasers: SMF uses narrow, coherent lasers at 1310/1550 nm; MMF typically uses low-cost 850 nm VCSELs (OM3/OM4/OM5 are “laser-optimized”).
• Propagation: SMF carries one propagation mode ⇒ negligible modal dispersion, highest bandwidth and distance. MMF carries many modes ⇒ modal dispersion limits reach.
• Bandwidth/distance (typical Ethernet):
  • MMF: 10GBASE-SR — OM3 300 m, OM4 400 m; 40/100G SR4 — 100–150 m; OM5 can extend with SWDM to ~150–300 m.
  • SMF: 10GBASE-LR 10 km; -ER 40 km; -ZR ~80 km. 100G DR 500 m (SMF), FR1 2 km, LR1 10 km; longer with coherent optics (100G/400G+ over tens–hundreds of km).
• Cost: MMF cabling and optics historically cheaper; SMF cable similar cost but optics/transceivers traditionally pricier (gap narrowing at high speeds). SMF alignment tolerances are tighter.
• Physical/handling: MMF higher numerical aperture, easier coupling; SMF more bend-sensitive (bend-insensitive variants exist).
• Standards/jackets: SMF OS1/OS2 (yellow); MMF OM1 (62.5 µm), OM2/OM3/OM4/OM5 (50 µm; orange/aqua/lime).

When to use:

• Use single-mode for long reach, campus/metro/long-haul, dark fiber leases, future-proofing, and high speeds over >500 m to many km; mixed-vendor WAN links; where dispersion/EMI are concerns.
• Use multimode for short-reach inside buildings and data centers (racks/rows), cost-sensitive high-density patching, and where links are ≤100–400 m at 10/40/100G. Upgrade to OM4/OM5 if pushing higher speeds or SWDM within DC distances.

• LC (Lucent/UPC or APC)

  • Choose for: High‑density racks, data centers, enterprise LAN, transceivers (SFP/SFP+/QSFP breakout), FTTH CPE.
  • Why: Small form factor, duplex by default, most common in modern gear.
  • Notes: Available in UPC (datacom) and APC (FTTx/telecom with low reflectance).

• SC (Subscriber/UPC or APC)

  • Choose for: Telecom/FTTx patch panels, legacy enterprise, OLT/ONT ports that require SC.
  • Why: Push‑pull, robust ferrule, easy field handling.
  • Notes: Larger than LC; APC favored for PON; check panel density constraints.

• ST (Straight Tip)

  • Choose for: Legacy multimode in campuses/industrial systems, some military/aerospace older installs.
  • Why: Bayonet lock resists vibration; common in older MMF.
  • Notes: Bulky, largely phased out; avoid for new high‑density builds.

• FC (Ferrule Connector)

  • Choose for: Lab/test benches, metrology, legacy long‑haul where stability matters.
  • Why: Threaded coupling, excellent repeatability under vibration.
  • Notes: Slow to mate; not for high‑density panels; often single‑mode.

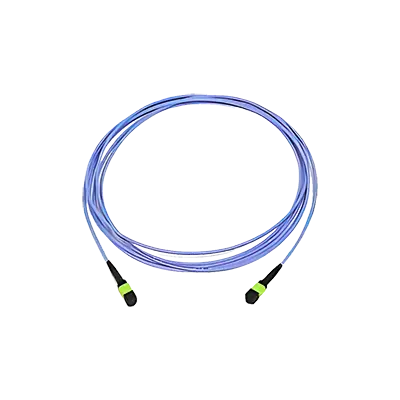

• MPO/MTP (Multifiber)

  • Choose for: Spine‑leaf data centers, 40/100/200/400G, parallel optics, backbone trunks, QSFP/OSFP.
  • Why: 8/12/16/24+ fibers in one ferrule; fastest deployment and highest density.
  • Notes: Polarity (A/B/C), keying, gender (pin/no‑pin) must match; use cassettes to break out to LC.

Quick selector:

• Need highest density/modern transceiver compatibility: LC.
• Legacy or PON/FTTx panels: SC (APC for PON).
• Rugged legacy MMF/industrial: ST.
• Precision lab/legacy single‑mode needing vibration resistance: FC.
• High‑speed parallel optics or rapid scaling: MPO/MTP (with proper polarity/cleanliness).

General tips:

• Match connector to device port type first.
• Use APC for reflective‑sensitive links (PON, RFoG), UPC for datacom.
• Plan for cleaning/access; MPO is more sensitive to contamination.
• For new builds: prefer LC at endpoints, MPO trunks in backbone.

• Application/termination

  • Tight-buffer: Best for indoor, short runs, frequent handling, easy field termination, patch cords, intra-building runs, interconnects.

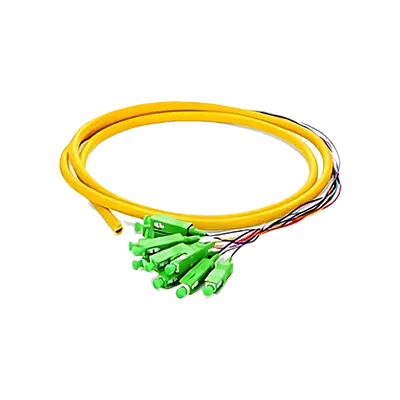

  • Loose-tube: Best for outdoor/long runs, higher fiber counts, better temperature/water protection; splice to pigtails at building entry.

• Location/environment

  • Indoor only: Use tight-buffer (or indoor-rated loose-tube) with OFNP (plenum), OFNR (riser), or OFNG (general) as code requires.
  • Outdoor only: Use loose-tube, UV-rated jacket, water-blocked (gel or gel-free), wide temp range.
  • Indoor–outdoor: Use dual-rated indoor/outdoor cable to avoid transition splice at entry.

• Building codes (check NEC/CEC/local)

  • Plenum spaces (air return): OFNP/FT6 or LSZH plenum if required.
  • Riser shafts: OFNR/FT4.
  • General horizontal: OFNG/CMG or better. Higher ratings may substitute for lower (e.g., plenum can be used in riser).

• Mechanical protection

  • Armored: Use in areas with rodents, crush risk, or direct-burial; choose dielectric armor near power to avoid induced voltages.
  • Non-armored: Use in protected conduit or trays.

• Pathway/installation

  • Conduit/duct: Loose-tube gel-free, high pulling strength; consider micro-duct for blown fiber.
  • Aerial: Figure-8/self-supporting with messenger; meet ice/wind loads.
  • Direct burial: Armored, water-blocked, with moisture barrier and robust jacket.
  • Indoor patching: Tight-buffer, flexible, smaller bend radius.

• Performance/compatibility

  • Match fiber type and count (OS2 single-mode, OM3/OM4/OM5 multimode) to optics.
  • Check minimum bend radius, pull tension, temperature range, flame rating, and UV resistance.
  • For PoE/EMI proximity: Prefer dielectric armor/jackets.

• Cost/maintenance

  • Tight-buffer higher per-fiber cost but cheaper termination.
  • Loose-tube cheaper per fiber for long/high-count runs; plan for splicing hardware.

• Documentation

  • Label pathways, maintain test results, and keep fire-stop and entry transition records.

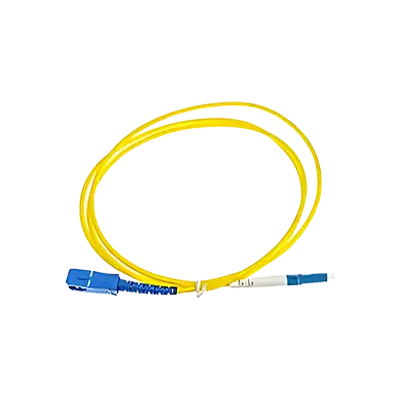

• Single-mode patch cords/jumpers (LC/SC/FC, UPC polish), per mated pair:

  • Insertion loss (IL): typical 0.15–0.25 dB; standard max 0.3–0.5 dB; premium/low-loss ≤0.2 dB max.
  • Return loss (RL): ≥50 dB typical 55 dB; minimum spec ≥50 dB.

• Single-mode APC (8° angle) connectors:

  • IL: typical 0.15–0.25 dB; standard max 0.3–0.5 dB; premium ≤0.2 dB max.
  • RL: ≥60 dB typical 65–70 dB; minimum spec ≥60 dB.

• Single-mode PC (older spherical polish):

  • IL: similar to UPC, typical 0.2–0.3 dB; max 0.5 dB.
  • RL: ≥40 dB (less stringent than UPC).

• Multimode patch cords (OM3/OM4/OM5, 850/1300 nm):

  • IL: typical 0.2–0.3 dB; standard max 0.5 dB; low-loss ≤0.35 dB max.
  • RL: usually not tightly controlled; typical ≥20–25 dB; minimum spec often ≥20 dB.

• MPO/MTP multi-fiber connectors:

  • Standard IL: max 0.35 dB per mated pair (some specs 0.6 dB); typical 0.25 dB.
  • Low-loss/elite IL: max 0.2–0.25 dB; typical 0.10–0.15 dB.
  • RL (SM APC): ≥60 dB. RL (SM UPC): ≥50 dB. RL (MM): ≥20 dB.

• Fusion splices within assemblies (if present):

  • IL: typical 0.05–0.1 dB; max 0.2 dB.
  • RL (mechanical splice only): ≥40 dB typical.

• Test references:

  • IL measured per IEC 61300-3-4 at 1310/1550 nm (SM) or 850/1300 nm (MM).
  • RL per IEC 61300-3-6; GR-326 commonly used for connectorized SM assemblies.

Note: Manufacturers’ “standard” vs “low-loss/premium” grades differ; always verify wavelength and grade-specific limits.

• Prepare

  • Verify design loss budget and polarity.
  • Inspect and clean connectors (per IEC 61300-3-35).

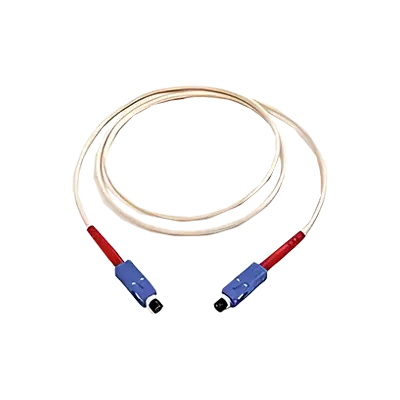

  • Use proper reference-grade test cords and adapters.

• Light Source/Power Meter (LSPM) – Certification of end-to-end loss

  • Purpose: Measure insertion loss and continuity; required for warranty/certification.
  • Wavelengths: MM 850/1300 nm; SM 1310/1550 nm (sometimes 1625/1650).
  • Reference methods: 1-jumper (best accuracy), 2-jumper (common), 3-jumper (when needed for fixed interfaces). Document method used.
  • Steps: Zero reference, test A→B and B→A, record length and loss, compare to budget. Verify polarity.
  • Use for: Acceptance testing per IEC 61280-4-1 (MM) / -4-2 (SM), TIA-568.3-D.

• OTDR – Characterization and troubleshooting

  • Purpose: Locate/quantify splices, connectors, reflectance; measure length; detect macrobends/breaks.
  • Setup: Use matched fiber type; appropriate pulse width; launch and receive fibers (≥100 m MM, ≥150–300 m SM) to see first/last events.
  • Test both directions; average traces; set pass/fail for event loss and reflectance.
  • Use for: Documentation of events, fault isolation, construction testing. Not a substitute for LSPM loss certification.

• Visual Fault Locator (VFL)

  • Purpose: Continuity, near-end breaks, connector/polarity ID, short patch leads; range typically <5 km, best for <1–2 km and through few splices.
  • Not for quantitative loss or long-haul faults.

• Acceptance criteria

  • Loss budget = fiber attenuation (dB/km × length) + connector/splice losses + margin.
  • LSPM end-to-end loss must be ≤ budget; OTDR event losses within limits; reflectance per spec.
  • Document results with test settings, wavelengths, reference method, bi-directional values, and traces.

• Tips

  • Label fibers, maintain bend radius, control reference stability, and store results.

• Plan: Verify cable ratings (indoor/OSP), temperature range, path, supports, lubrication compatibility; document labels and slack.
• Bend radius:
  • During install (under tension): ≥15× cable OD (≥20× preferred on sheaves/rollers).
  • Long‑term (at rest): ≥10× cable OD; patch cords: ≥20× recommended.
  • Avoid sharp edges; use radius control and Velcro (no tight zip‑ties).
• Pulling tension:
  • Follow manufacturer max; typical indoor: 50–100 lbf (220–440 N); OSP can be higher per spec.
  • Use pulling eye/basket grip and swivel; do not pull on fibers or connectors.
  • Use approved cable lubricant; monitor tension; avoid twisting/kinks.
  • Control sidewall pressure: bends large and smooth; minimize total bend count; support cable every 3–4 ft (indoor) or per spec.
• Handling/termination:
  • Maintain strain relief; boots and clamps seated; provide service loops (0.5–1 m).
  • Keep cables off fluorescents, hot pipes, and high‑EMI equipment; protect from UV/chemicals.
• Cleaning (inspect‑clean‑inspect):
  • Use one‑click cleaners or lint‑free wipes with 99% IPA; wet–dry method.
  • Clean both connector and adapter; use port cleaners for bulkheads.
  • Never touch endfaces; never reuse wipes; cap immediately; keep caps clean.
  • Avoid unfiltered compressed air; if used, ESD‑safe, residue‑free.
• Polishing (field terminations):
  • Use proper films: ~12→5→3→1 µm, then 0.3 µm final (per kit).
  • Light, even pressure; figure‑8 strokes on clean glass plate; clean film frequently.
  • Match type: UPC vs APC (maintain 8° for APC).
  • Inspect at 200–400×; no scratches, pits, edge chips; verify geometry if available (radius, apex offset, undercut).
• Verification/maintenance:
  • Test and document with OLTS/OTDR; keep baseline; re‑test after moves/adds/changes.
  • Dispose of fiber shards safely; use eye protection.
