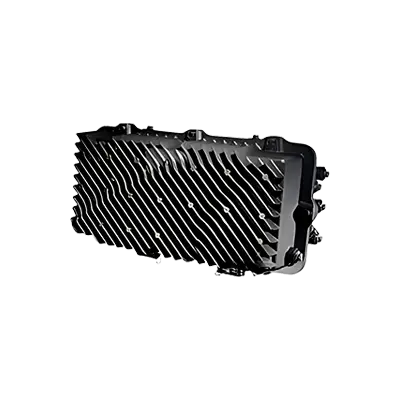

Optical hubs:

• Central aggregation sites (headend/regional hub) where many fibers terminate.
• House active transmission gear: lasers/transmitters, receivers, EDFAs, ROADM/WDM mux/demux, switches/routers, monitoring/alarms, power and environmental systems.
• Groom, amplify, wavelength-multiplex, and distribute optical services to the field; provide redundancy and control.

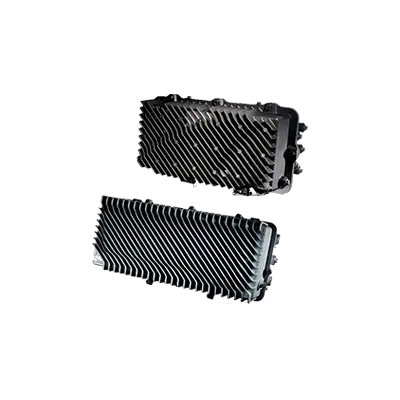

Optical nodes:

• Field-deployed endpoints that serve a localized service area.
• In HFC: convert optical to RF for downstream coax and RF to optical upstream; include amplifiers, diplexers, and often Remote PHY/MACPHY (RPD/RMD) electronics.
• In fiber-deep/FTTx variants: may host active electronics (e.g., 10G PON extenders) but primarily act as the boundary between feeder fiber and last-mile medium.
• Powered, monitored, and service-affecting for a specific neighborhood segment.

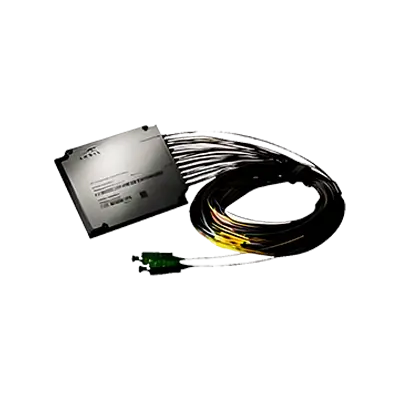

Optical passives:

• Unpowered components that only direct, split, combine, or filter light: fiber cables, splices, connectors, patch panels, splitters/taps, couplers, CWDM/DWDM filters, circulators, OADMs, attenuators.
• Define the optical distribution network (ODN) and its loss/dispersion budget.

How they differ:

• Function: hubs aggregate/manage and launch services; nodes deliver/convert services to access media; passives shape the light path without electronics.
• Power/activeness: hubs and nodes are powered (active); passives are not.
• Location/scale: hubs are centralized/regional; nodes are distributed near subscribers; passives exist throughout plant.
• Management: hubs/nodes are monitored, configurable, and fault-alarming; passives are not.
• Impact on design: hubs set capacity and control; nodes determine service segmentation and conversion; passives dominate insertion loss and reach budgets.

HFC

• Optical hub/headend: Aggregates services (video, IP, voice), hosts RF modulators/CMTS, optical transmitters/receivers, DWDM/EDFA gear, timing, and monitoring. Sends downstream analog/digital optics to service areas; receives upstream return optics.
• Optical node (field-deployed, powered): Converts downstream optical to RF for the coax plant and converts upstream RF to optical back to the hub. Provides diplexing (downstream/upstream splits), AGC, upstream attenuation/EQ, and sometimes segmentable modules for smaller service groups. Supports DOCSIS PHY requirements (MER/SNR), manages optical budget, and may carry RFoG overlays. Node splits and mid-splits/high-splits adjust upstream capacity; coax amplifiers extend coverage beyond the node.

FTTH/PON

• Optical hub/central office: Hosts OLTs, aggregation switches/routers, timing (PTP), DWDM/CWDM mux/demux, EDFAs (for video overlay or long reach), powering/backup, and OAM. The OLT terminates PON, handling downstream broadcast and upstream TDMA scheduling, DBA, security (AES), and VLAN/QoS.
• “Node” function is largely passive: field splitters and Fiber Distribution Hubs (FDHs) distribute a single PON port to many ONUs/ONTs via 1:N split (e.g., 1:32/1:64). These are unpowered; they set optical loss and reach. The customer ONT/ONU is the active endpoint, converting optical to Ethernet/voice and enforcing QoS.
• Wavelengths/variants: GPON (1490/1310/1550), XG/XGS-PON (1577/1270), NG-PON2 (TWDM). OLTs in hubs mux multiple PONs via DWDM onto feeder fibers; video overlay (if used) added at 1550 nm with EDFAs.
• Remote architectures: R-OLT/Micro-OLT can be placed in cabinets closer to users; still fed from the optical hub via DWDM backhaul. Unlike HFC nodes, PON field elements are typically passive; intelligence and scheduling reside at the OLT.

• Splitters: Divide optical power from one fiber into multiple outputs (1×2 to 1×N) for broadcasting signals (e.g., PON), monitoring, and redundancy. Implemented as FBT or PLC; PLC offers better uniformity for high split counts. Key specs: split ratio, insertion/excess loss, uniformity, return loss, wavelength range, PDL. Role: distribute a single source to many endpoints or tap a small percentage for test/monitor without service interruption.

• WDM filters: Combine or separate wavelengths onto/from a single fiber. Types: thin-film filters (TFF), arrayed waveguide gratings (AWG), CWDM/DWDM Mux/Demux, OADM/ROADM modules. Roles: increase capacity by multiplexing channels, segregate services (e.g., 1310/1490/1550 nm in PON), enable add/drop of specific wavelengths, and isolate bands (O/E/S/C/L). Key specs: channel spacing, insertion loss, isolation/crosstalk, passband ripple, center wavelength accuracy, PDL, return loss.

• Couplers: Combine or split optical power between two or more fibers (directional couplers, 50/50 or asymmetric). Roles: power combining, splitting, tapping for monitoring, interferometric sensing, and feedback loops. Variants include polarization-maintaining (PM) and wavelength-flattened couplers. Key specs: coupling ratio, excess loss, directivity, bandwidth, PDL.

• Attenuators: Reduce optical power to meet receiver dynamic range and prevent saturation. Types: fixed (pads), variable (VOA: mechanical, MEMS, thin-film), inline or connectorized. Roles: link budget trimming, channel equalization in WDM systems, protecting test equipment, simulating span loss. Key specs: attenuation value/range, step resolution (for VOA), wavelength dependence, return loss, PDL, power handling.

Placement examples: splitters in PON distribution; WDM Mux/Demux at metro/core edges; couplers for taps/combining; attenuators near transmitters/receivers or in test setups.

1. Gather worst-case optics data:

• Tx launch (min) [dBm], Rx sensitivity (max) [dBm], wavelength, allowed optical return loss (ORL).
• Fiber attenuation α [dB/km], splice loss [dB/splice], connector loss [dB/conn], splitter loss/port [dB], other components (WDMs), and margins.

2. Available budget: Budget = Tx(min) − Rx(sens) [dB]

3. Sum all losses: L = α·Distance + Nsplices·Lsplice + Nconns·Lconn + ΣLcomponents + Lsplitters + Margins

Typical values:

• α: 0.35 dB/km @1310 nm, 0.25 dB/km @1550 nm
• Splice: 0.05–0.1 dB
• Connector (APC): 0.2–0.5 dB
• Splitter 1×N insertion loss ≈ 10·log10(N) + 0.2–1 dB excess • 1×2 ≈ 3.5 dB, 1×4 ≈ 7.2 dB, 1×8 ≈ 10.5 dB, 1×16 ≈ 13.5 dB, 1×32 ≈ 16.8 dB, 1×64 ≈ 20.0 dB
• Margins: engineering 3 dB, aging 0.5–1 dB, repair 0.5 dB, temperature 0.5 dB

4. Pass/fail: Link works if L ≤ Budget with margin remaining ≥ 0 dB (prefer ≥ 2–3 dB).

5. ORL/return loss:

• Meet transceiver ORL spec (e.g., ≤ −27 to −32 dB overall). ORL is not a simple sum; control per-interface RL (use APC).
• Target per-connector RL: ≤ −55 dB (APC at OLT), ≤ −40 dB at ONT. Minimize flat (UPC) interfaces and open ports; use terminations.

6. Choosing split ratio:

• Compute L without splitter, then add candidate splitter loss and margins; pick highest N where L ≤ Budget and ORL spec is met.
• Rule of thumb (typical GPON budgets): B+ (~28 dB) supports 1×16 comfortably and 1×32 at shorter reach; C+/XG (~31–33 dB) supports 1×32 broadly and 1×64 with short fiber/low losses.
• If over budget: reduce split, shorten distance, cut connectors/splices, use higher-class optics, or cascade splitters with optimized placement.

Always verify with vendor link/ORL calculators and worst-case component specs.

• Architecture: PON is point-to-multipoint using passive splitters (no power in outside plant). Active Ethernet (AE) is point-to-point with powered Ethernet switches in the field or central office.
• Bandwidth model: PON shares downstream TDM and upstream TDMA among many ONTs; AE provides dedicated line-rate per subscriber (1G/10G) with full-duplex Ethernet.
• Fiber efficiency: PON conserves feeder fibers via split ratios (e.g., 1:16–1:128). AE typically needs one fiber (or pair) per user, increasing feeder count.
• Power/plant: PON has no active outside components, reducing field power/cooling and failure points. AE requires powered cabinets/switches, UPS, and environmental control.
• Distance/reach: PON supports long reach (typically 10–20 km) constrained by optical budget and split. AE reach depends on Ethernet optics (commonly 10 km+), but P2P per user.
• Performance/latency: AE offers predictable, low latency and symmetric bandwidth. PON adds DBA scheduling/guard times; upstream contention can add jitter.
• QoS/Services: AE natively supports Ethernet features (VLANs, ACLs, per-subscriber QoS). PON supports QoS via OLT scheduling; multicast is efficient but feature depth varies by vendor/standard.
• Operations: PON lowers outside-plant OPEX and truck rolls; AE simplifies troubleshooting per dedicated link but increases field maintenance for actives.
• Cost: PON typically lower CapEx per home passed at scale; AE higher fiber and active costs but simpler CPE. Total cost depends on fiber availability and power.
• Resilience: PON protection via Type B/C (dual feeder/OLT); splitter failures impact many users. AE faults isolate to single links/ports; ring/ERPS options for backhaul.
• Security: PON uses AES downstream; shared medium requires robust encryption. AE is inherently isolated per link; standard Ethernet security applies.
• Evolution: PON upgrades (GPON→XGS-PON→25G/50G) via wavelength coexistence. AE scales by swapping optics/switches (1G→10/25/50G).

• Low optical power

  • Verify correct patching, polarity, connector types (SM vs MM, APC vs UPC, MPO polarity).
  • Check Transceiver DOM/DDM (Tx/Rx power, temp, bias). Replace if Tx power low or bias high.
  • Clean/inspect connectors and adapters; re-terminate damaged connectors.
  • Measure end-to-end loss with light source/power meter; compare to design budget.
  • Locate faults with OTDR (splices, breaks, macrobends). Fix excessive bends; resplice high-loss joints.
  • Remove unnecessary attenuators; ensure correct fiber type and wavelength.

• High loss

  • Sum connector/splice/segment losses versus budget; identify overage points.
  • Rework poor splices; replace kinked or crushed fiber; correct tight bend radius.
  • Verify patch panel cleanliness and proper ferrule mating (2.5 mm vs 1.25 mm).
  • Check for mismatched mode or core size; avoid MM–SM mismatches.

• Noise/OSNR issues

  • Measure OSNR with OSA; ensure EDFAs not saturated or starved; adjust gain/tilt.
  • Reduce reflections: use APC connectors, add isolators where needed, fix open ports with caps.
  • Check laser health (RIN), chirp; replace aging lasers.
  • Eliminate in-band ASE from cascaded amplifiers; optimize spacing/filters.
  • For HFC/RFoG return, mitigate ingress/clipping at node; balance RF levels, remove noisy CPE.

• High BER

  • Confirm Rx not overloaded or underpowered; add/remove attenuator accordingly.
  • Check FEC status, pre-/post-FEC BER; inspect eye diagram/clock recovery.
  • Validate dispersion limits (CD/PMD) for distance/bitrate; add DCMs or lower rate.
  • Ensure wavelength/channel plan correct; avoid cross-talk; fix mis-tuned lasers.
  • Verify transceiver compatibility, firmware, and temperature; reseat/replace suspect optics.
  • Perform loopback tests to isolate fiber vs equipment; swap fibers/ports to localize fault.

• General

  • Document as-built loss/OSNR; label fibers; maintain spares; enforce cleaning and bend-radius practices.

Standards

• ITU‑T: G.652.D (standard SMF), G.657.A1/A2 (bend‑insensitive OSP/MDU), G.655 (NZ‑DSF, long links).
• IEC: 61753/61754 (connector/adaptor performance & interfaces), 61755 (endface geometry), 61300 series (tests), 60825 (laser safety), 61300‑3‑35 (endface inspection).
• Telcordia/GR: GR‑20 (OSP cable), GR‑409 (indoor), GR‑771 (closures), GR‑326 (connector assemblies), GR‑1209/1221 (splitters/passives).
• TIA: 568.3‑D (optical cabling), 598 (fiber color coding), 606‑C (administration/labeling), 607‑D (bonding/grounding).
• SCTE (HFC/RFoG): SCTE 174 (RFoG), SCTE 195/196 (PON/RF coexistence, WDM), SCTE 171/174 family for optical distribution.
• IEEE 802.3 (Ethernet optics where applicable).

Connector types

• OSP hubs/nodes/passives: SC/APC preferred (low reflect, −60 dB RL typical); FC/APC in legacy.
• Equipment/front‑panel density: LC/UPC or LC/APC per vendor spec; use APC anywhere analog/RFoG or high‑power optics are used.
• High‑count trunks: MPO/MTP (12/24/…); use pinned/unpinned per module; keep APC for analog if available.
• Use fusion‑spliced pigtails over field‑polish; limit adaptors/mates; dust caps on every unmated port.

Installation best practices

• Power budget with ≥3 dB margin OSP; verify Rx not overpowered (use attenuators as needed).
• RFoG wavelengths: 1550 nm DS video, 1610 nm US; ensure correct WDM filters; consider 1310/1490 coexistence with PON.
• Bend radius: ≥10× OD static, ≥20× OD dynamic (or cable spec); avoid microbends; respect max pull tension; strain‑relief all terminations.
• Use GR‑rated closures/trays; weatherproof (IP65+ outdoor); proper bonding/grounding.
• Clean/inspect every endface (dry clean then wet‑dry if needed), certify to IEC 61300‑3‑35; never mate dirty connectors.
• Test/record: OLTS loss at service wavelengths, OTDR bi‑directional, reflectance, continuity; label per TIA‑606‑C; maintain as‑builts and port maps.
• Provide slack loops, physical protection, and fiber ID tags; cap all spares.

Maintenance

• Periodic optical power audits; OTDR on suspected degradations; track connector mating cycles.
• Monitor RF/MER/BER for nodes; maintain environmental seals; replace damaged jumpers.
• Enforce laser safety per IEC 60825.
