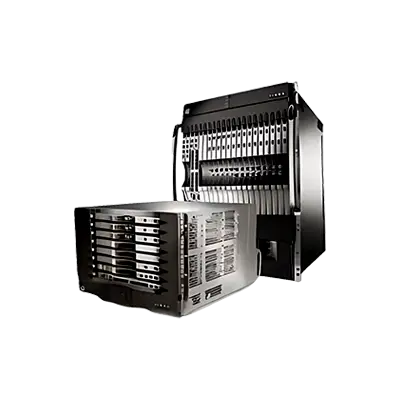

A Cable Modem Termination System (CMTS) is the headend/router for a cable operator’s DOCSIS network. It terminates RF channels from customer cable modems, enforces policy and QoS, and bridges/routers subscriber traffic to the IP core.

How it works in HFC:

• Placement: Resides at the headend/hub. RF ports feed optical transmitters to fiber nodes; beyond the node, coax distributes downstream and aggregates upstream back to the CMTS.
• Downstream (CMTS → modems): Continuous broadcast carriers (DOCSIS 3.0: 6/8 MHz QAM; 3.1: wide OFDM blocks). CMTS encapsulates IP into DOCSIS frames, applies FEC (e.g., LDPC in 3.1), channel-bonds multiple channels, and inserts timing/management messages.
• Upstream (modems → CMTS): Bursty, scheduled access on mini-slots (3.0 TDMA/S-CDMA; 3.1 OFDMA). The CMTS demodulates bursts, equalizes, corrects errors, and centrally schedules transmissions to avoid collisions and mitigate noise.
• Ranging and power/time alignment: Modems perform initial and periodic ranging; the CMTS commands timing advance and transmit power to align bursts at the headend despite varying plant delays/attenuation.
• Provisioning and security: The CMTS coordinates DHCP, TFTP/HTTP config download, and TOD; authorizes modems and service flows; enforces speeds/policing/shaping; applies BPI+ encryption.
• QoS and service flows: Per-modem/per-service flow QoS (UGS/rtPS/nrtPS/BE) supporting data, voice (PacketCable), and video IP multicast; multicast replication at the CMTS.
• Capacity/scalability: Service groups map RF channels to subsets of modems; operators split nodes or add channels to increase capacity.
• Management/Telemetry: SNMP/streaming telemetry, spectrum analysis, PNM; IPv4/IPv6 routing, CGNAT/BRAS integration.

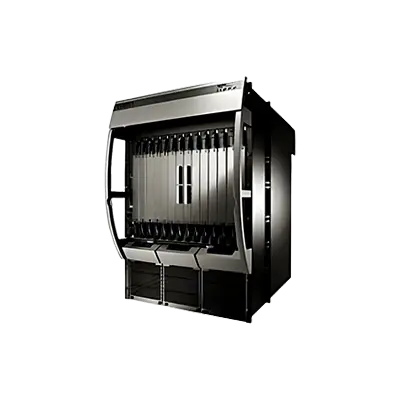

A Converged Cable Access Platform (CCAP) is a unified headend platform that delivers both DOCSIS broadband and video over the same hardware, interfaces, and scheduling domain. It consolidates the functions of a CMTS (DOCSIS data) and Edge QAM (linear video QAM) into one system, sharing RF resources, control, and management.

How it differs/replaces:

• CMTS vs CCAP: A traditional CMTS handles only DOCSIS data (upstream and downstream). CCAP includes full CMTS functionality plus integrated downstream QAM for video, a common downstream scheduler, and higher-density downstream/upstream ports supporting DOCSIS 3.0/3.1/4.0 (OFDM/OFDMA), IPv6, and advanced QoS/policy.
• Edge QAM vs CCAP: An Edge QAM only modulates downstream MPEG video into QAM channels. CCAP embeds this function, eliminating separate Edge QAM chassis, RF combining complexity, and duplicative management. CCAP can output legacy QAM video and IP video, easing migration to all-IP.

Architectures:

• Integrated CCAP (I-CCAP): All MAC/PHY for DOCSIS and video reside in the chassis.

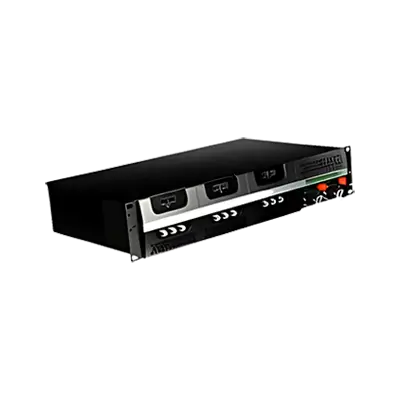

• Distributed Access Architectures (DAA): CCAP core in the headend with Remote PHY (R-PHY) or Remote MACPHY (R-MACPHY) devices at the node. This replaces traditional analog optics with digital Ethernet to the node, improving SNR, latency, scalability, and enabling deeper node splits.

Benefits:

• Reduced space, power, and cooling; simplified operations.
• Unified provisioning/telemetry and a common scheduler for better spectrum use.
• Backward compatibility for QAM video while transitioning to IP video.
• Higher service density, better QoS, and readiness for virtualization/SDN.

• DOCSIS 3.0 (SC-QAM, channel bonding)

  • Throughput (per service group, typical): downstream up to ~1.2–1.5 Gbps (32×256‑QAM), upstream ~100–200+ Mbps (up to 8×64‑QAM, split-dependent).
  • Latency: 8–20+ ms typical under load; MAP-based request/grant; no LLD/PIE; jitter rises with contention and small minislot granularity.
  • CMTS/CCAP features: SC‑QAM downstream/upstream schedulers; channel bonding; basic QoS/DBA; limited PNM; Full Band Capture optional on CMs; no profiles, no OFDM/A; centralized architectures dominate.

• DOCSIS 3.1 (OFDM/OFDMA, profiles)

  • Throughput: downstream 4–6+ Gbps with 1×192 MHz OFDM (more with multiple blocks, higher QAM), upstream ~0.5–2+ Gbps with OFDMA (split-dependent).
  • Latency: PIE AQM reduces queuing delay; finer scheduling; optional Low Latency DOCSIS (LLD) with Dual-Queue/Congestion Signals and Proactive Grant Service (PGS) cuts RTT to sub‑5 ms under load.
  • CMTS/CCAP features: OFDM/A PHY; Profile Management (PMA) and per‑subcarrier modulation; advanced upstream schedulers (mini-slot < 1 μs); PNM with FFT-based impairment detection; DAA enablement (R-PHY/R-MACPHY); mid/high-split support; IPv6 scale; better multicast/unicast video convergence.

• DOCSIS 4.0 (ESD and/or FDX, extended spectrum)

  • Throughput: Extended Spectrum DOCSIS to 1.8 GHz enables downstream 8–10+ Gbps and upstream 2–6+ Gbps (split-dependent). Full Duplex DOCSIS enables up to ~10 Gbps symmetric in FDX band with echo cancellation.
  • Latency: LLD integrated and more pervasive; FDX halves request/grant contention in overlapping spectrum and shortens scheduling loops; sub‑5 ms widely achievable, sub‑2 ms in engineered cases.
  • CMTS/CCAP features: FDX MAC/PHY (self‑interference cancellation, interference groups), wideband spectrum mgmt to 1.2/1.8 GHz, tighter timing/synchronization, richer PMA with 4K–8K+ QAM, upstream resiliency and multi‑profile OFDMA, mandatory DAA/vCMTS scale-out, enhanced PNM and automation for impairments and echo domains.

Overall: each generation raises capacity (bonded SC-QAM → OFDM/A → ESD/FDX), improves latency (PIE/LLD/PGS, FDX), and adds CMTS intelligence (profiles, PNM, DAA, wideband/FDX control).

• Define business/technical goals: capacity, latency, OPEX, spectrum plan (mid/high/ultra-high split), DOCSIS 3.1/4.0, video (QAM vs IPTV).
• Audit current HFC: node sizes, amplifier cascades, RF levels/MER/BER, leakage, ingress/EGC, plant powering, fiber availability, space/power in hubs/headend.
• Choose target: Integrated CCAP vs DAA (R-PHY or R-MACPHY). Validate vendor roadmaps, interoperability (RPD/RMD + CCAP Core), licensing, telemetry.
• Core/IP design: IP/MPLS aggregation to nodes, QoS, multicast (if QAM video), MTU/Jumbo, LAG/MC-LAG or EVPN/EVPN-MH, fast reroute, timing (PTP 1588v2 G.8275.1 + SyncE), boundary/transparent clocks, timing SLA.
• Security/compliance: RPD/RMD PKI, BPI+/Secure Software Download, DHCP/ToD/TFTP/Option 43/82, LI, IPDR, GDPR/CALEA, management segmentation/AAA.
• OSS/BSS: provisioning (DOCSIS configs, DHCP scopes), inventory, fault/perf, PNM, firmware lifecycle, telemetry (gNMI/streaming), alarming.
• RF/spectrum plan: OFDM/OFDMA placement, pilot/suppression, PLC/trigger rails, attenuation/tilt, return path cleanup, high-split readiness.
• Hardware plan: RPD/RMD/node shells, optics (10/25/100G), power modules, outdoor thermal, strand powering, battery backup, spares.
• Lab/stage: emulate services, timing, failover, firmware, multi-vendor interop, cable modem/EMTA/STB compatibility, video flows, QoS/policing.
• Migration strategy: phased per service group/node; overlay with dual CCAP Core; maintain legacy EQAM/CMTS coexistence; maintenance windows; customer comms; MOPs with checkpoints and rollback.
• Execution: install backhaul and timing, turn up CCAP Core, onboard RPDs (GCP), validate timing lock, RF align, move small trial group, monitor KPIs (FEC, CER, OFDMA utilizations), expand iteratively.
• Post-migration: decommission legacy, re-balance service groups, enable advanced features (profile management, OFDMA upstream), continual PNM, capacity augments.
• Success metrics: churn/trouble calls, latency/jitter, utilization headroom, error rates, MTTR, power/space savings.
• Train NOC/field; update playbooks; vendor support SLAs.

• Channel bonding

  • Build bonding groups per service tier; balance groups across ports/segments; avoid oversubscription on any single RF channel.
  • Include at least one robust primary channel (SC‑QAM 64/256QAM) for legacy CMs; ensure primary channels have best SNR.
  • Mix SC‑QAM + OFDM in DS groups for 3.1 CMs; use selective bonding groups to segregate noisy legs.
  • Keep contiguous spectrum, align center frequencies, and equalize levels within ±1 dB; maintain identical interleave/guard settings within groups.
  • Enable proactive load balancing and move modems off impaired channels; prevent partial service by matching CM config to available channels.

• OFDM (DS) / OFDMA (US)

  • Size channels to plant: DS 192 MHz (or 96 MHz where constrained); US 96/48 MHz depending on split; keep guard bands around LTE/5G ingress.
  • Use profile management (PMA): multiple profiles per PLC/PSLC; drive modulation with RxMER per-subcarrier and FEC error rates; enable LDPC.
  • Exclude bad subcarriers (notches) and update exclusion lists dynamically from PNM.
  • Set cyclic prefix/roll-off to plant echo; longer CP for longer taps only where needed.
  • Schedule smaller resource blocks/minislots for latency traffic; align OFDMA frame timing network-wide.
  • Maintain PLC/PLL power headroom and robust profile; protect with higher Tx power and lower modulation.

• QoS/Scheduling

  • Define service flows with Min Reserved Rate, Max Sustained, and Max Burst per tier; police at CMTS ingress; shape at egress.
  • Map DSCP/802.1p to service classes; use WFQ/WRR with strict-priority for voice/control; enable ECN marking.
  • Prefer LLD (Low Latency DOCSIS) if supported; else use UGS/rtPS for voice, nrtPS for video, BE for data.
  • Enable PIE AQM (DS/US); target queue delays ~15–30 ms; monitor and tune.
  • Isolate DDoS/elephant flows with per‑sub flow limits; avoid head-of-line blocking with per‑SFQ queues.

• Operations

  • Continuously monitor MER, FEC/codeword errors, profile hit ratios, latency/jitter; auto‑reprofile nightly; integrate PNM for ingress remediation.

• Monitor continuously
  • SNMP/telemetry: per-channel SNR/MER, pre/post-FEC codewords, utilization, CM flaps, T3/T4.
  • PNM/Full Band Capture and spectrum analyzer for ingress/impulse noise.
  • Syslog/traps for ranging failures, partial service, profile drops.
• SNR/MER
  • Thresholds: DS QAM256 MER ≥35 dB; US QAM64 SNR ≥31 dB; OFDM PLC SNR ≥35 dB; OFDMA ≥28–32 dB (profile-dependent).
  • Commands: show cable downstream|upstream channel stats, show cable modem phy, show cable ofdm/ofdma channel, show controllers utilization.
  • Actions: fix plant impairments (loose connectors, corrosion, suckouts), rebalance levels/tilt, isolate ingress, optimize return path filters, correct amp/splitter issues, adjust CMTS Rx attenuators and target power.
• FEC errors
  • Watch post-FEC uncorrectables and Unerrored/Correctable/Uncorrectable codeword rates; target post-FEC UCW <0.1% sustained.
  • For D3.1, track LDPC/BCH failures and PLC/NCP MER.
  • Commands: show cable … codeword counters per channel and per CM.
  • Actions: mitigate noise/impairments, reduce modulation/profile temporarily, increase interleave depth (D3.0), verify equalization coefficients, correct micro-reflections.
• Ranging issues
  • Indicators: T3/T4, initial-maintenance aborts, RCS partial service, power at limits, ranging retries/backoffs.
  • Commands: show cable modem flap/rcs-partial, show cable upstream spectrum/capture, show cable upstream noise/ingress, show cable mac-scheduler.
  • Actions: clear ingress, fix return path alignment, ensure upstream target ~40–45 dBmV at CMTS, widen maintenance windows if congested, correct timing/guard intervals, check bad taps/drops.
• Congestion
  • KPIs: upstream minislot usage >80%, downstream >80% capacity, MAC-scheduler latency, active CM count per service group.
  • Commands: show cable service-group utilization, show mac-scheduler queues, show downstream OFDM profile occupancy, show per-SF throughput.
  • Actions: add/split service groups, enable/load-balance channels, optimize OFDM/A profiles, enable AQM/PIE, police heavy flows if needed, add channels/bandwidth.

• Scalability

  • Segment service groups aggressively (node splits, OFDM/OFDMA profiles, upstream/downstream channel bonding) to keep per-SG subs/bitrate within scheduler limits.
  • Balance MAC domains and RF ports; avoid oversubscription of US SCHED/FG/mini-slot resources; monitor MER/SNR/LDPC FEC.
  • Use profile management (PMA) and PNM to optimize modulation and proactively fix plant impairments.
  • Hierarchical QoS: per-CM, per-service flow, and per-queue shaping; leverage DQoS/USSF for latency-sensitive traffic.
  • Scale control-plane: DHCP relay/proxy on CMTS, Option 82/relay ID hashing, Anycast DHCP/TFTP, IP pools per-SG; rate-limit broadcast/multicast.
  • Automate config generation (templating), use IPv6 (DHCPv6-PD), and telemetry streaming (gNMI/SNMPv3).

• Redundancy/High Availability

  • CCAP core/line-card 1:1 or N+1; stateful switchover (SSO) with synchronized MAC domains, service flows, TEKs.
  • ISSU/GR for control protocols; hitless RF channel changes; LAG/ECMP uplinks; redundant timing (DOCSIS/1588/SyncE).
  • Dual DHCP/TFTP/RADIUS with health checks, anycast VIPs, and DHCP failover; per-SG isolation to limit blast radius.
  • Power/cooling diversity; separate fiber paths; proactive sparing for optics/RPDs (for DAA).

• Security

  • Enforce BPI+ mandatory: authenticate CMs via manufacturer certs, require MDD TLV privacy, validate MICs, per-service-flow TEKs, periodic reauth/TEK rotation; reject non-BPI CMs.
  • Protect PKI: secure root/intermediate trust, CRL/OCSP checks, strict time sync.
  • DHCP/TFTP/AAA
    • DHCP: relay with Option 82, ACL/snooping/guard, rate-limit requests, IP source-verify, DHCPv6 Guard/RA Guard, separate scopes for CM/CPE/EMTA; implement DHCP failover.
    • TFTP/config: sign config files (DOCSIS config file signing), prefer HTTPS/SCD/secure SW download for images; isolate and ACL servers; limit file paths.
    • AAA: RADIUS/TACACS+ for CMTS admin and subscriber policy (CoA, per-SF QoS, accounting); redundant servers, TLS/IPSec for transport; per-operator realms.
  • Plant/CPE protections: max CPE per CM, upstream ACLs/policers, uRPF, control-plane policing (CoPP), anti-DoS (dynamic filters), rogue CM detection, spectrum/Ingress control.
  • Management: SSH only, SNMPv3, RBAC, logging/NetFlow/IPFIX, LI compliance where required.
