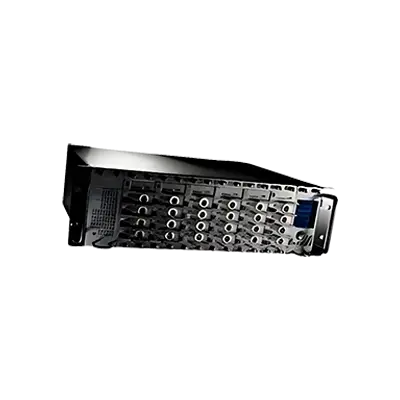

A cable headend optics platform is the modular system in a cable operator’s headend/hub that converts aggregated RF/IP services into optical signals for transport over fiber to optical nodes, and receives return signals back. It is the optical “engine” of a hybrid fiber-coax (HFC), RF over Glass (RFoG), or distributed access architecture (DAA).

How it works:

• Ingest and processing: Linear broadcast video, IP video, voice, and data enter from encoders, edge-QAMs, and the CMTS/CCAP core (DOCSIS). Signals are conditioned, combined, and level-aligned.
• Modulation: Downstream services are modulated (QAM/OFDM for DOCSIS 3.0/3.1/4.0; QAM for legacy video; IP for IPTV). Timing/sync is maintained (e.g., PTP for DAA).

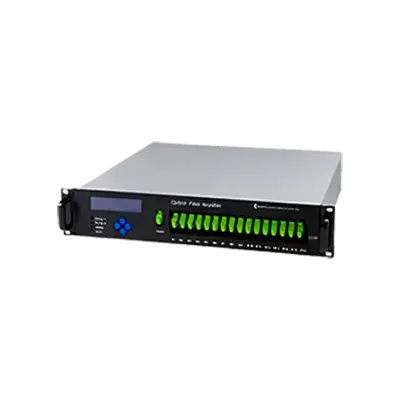

• Optical conversion (downstream): RF or digital streams feed optical transmitters. Analog optics (1310/1550 nm) send RF to nodes; digital optics (10/25/100G Ethernet, DWDM) backhaul to Remote PHY/MACPHY nodes. EDFAs boost 1550 nm for long reach; DWDM muxes combine many wavelengths per fiber.

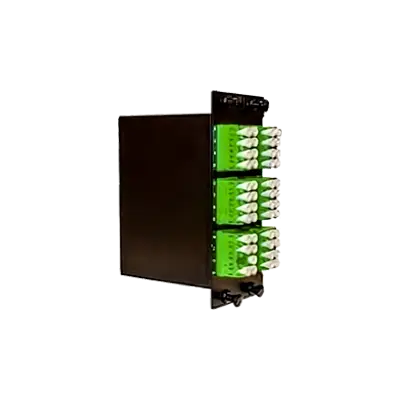

• Distribution: Optical splitters/couplers fan out signals to service groups. Redundant paths/power ensure resiliency.
• Node interface: In legacy HFC, nodes convert downstream optics back to RF for coax to homes. In DAA, remote nodes generate RF locally from digital packets.
• Return path (upstream): Bursty upstream from cable modems is captured at nodes and sent via optics to the headend. Burst-mode receivers (analog) or Ethernet links (DAA) feed the CMTS/CCAP for demodulation and scheduling.
• Control/management: SNMP/NETCONF/telemetry monitor optics, temperature, power, MER/SNR, with hot-swappable modules and automatic gain/level control.

Benefits: higher capacity via DWDM, longer reach with EDFAs, improved SNR, scalable service groups, and smoother migration from legacy HFC to DAA/PON.

• Start with constraints

  • Fiber: count, reach, right-of-way, construction cost.
  • Serving goals: peak/avg throughput, symmetry, latency, SLA, multicast video.
  • Time-to-market and budget: capex now vs opex later.
  • Plant condition: coax length, amplifier cascade, power, ingress.
  • Workforce/OSS: DOCSIS vs PON skills, back-office change tolerance.

• Choose HFC (centralized optics) when

  • You must reuse existing analog optics/RF video and minimize disruption.
  • Fiber is scarce; you need analog forward/return, node splits, mid-split/high-split.
  • DOCSIS 3.1/4.0 ESD upgrades suffice for 1–5 G down, limited upstream.
  • You can manage ingress; latency/Jitter needs are moderate.
  • Pros: lowest near-term capex, rapid upgrades. Cons: analog optics complexity, ingress, limited symmetry.

• Choose DAA: Remote PHY (R-PHY) when

  • You want digital optics to the node, reduce analog impairments, and keep MAC centralized.
  • You need better upstream SNR, lower opex, easier node+X architectures.
  • You want DOCSIS 4.0 path (ESD/FDX depending on plant).
  • Pros: improved performance with existing DOCSIS ops; centralized control. Cons: CCAP core scale, tight timing, backhaul bandwidth.

• Choose DAA: Remote MACPHY (R-MACPHY) when

  • Hub space/power/backhaul are constrained; you prefer distributed compute.
  • You want reduced latency and CCAP core offload.
  • Outside plant power/cooling and management maturity are acceptable.
  • Pros: lowest latency in DOCSIS, scales edges well. Cons: field complexity, software management.

• Choose PON (XGS-PON/25G) when

  • You need symmetric multi-gigabit, strict SLAs, or greenfield fiber.
  • You’re migrating to all-IP video and want simple Ethernet optics.
  • Business/wholesale mobile backhaul demand symmetry/latency.
  • Pros: high symmetry, simple optics, future 25/50G. Cons: overlay complexity with DOCSIS, new OSS/BSS.

• Decision heuristics

  • Brownfield coax, fast upgrade: HFC → DAA R-PHY → R-MACPHY as needed.
  • Fiber-rich, symmetry-first, greenfield/overbuild: PON.
  • Tight hub, low-latency edge, DOCSIS continuity: R-MACPHY.
  • Preserve RF video/legacy CPE now: HFC or R-PHY with RF overlay.

• Wavelength plan

  • Prefer C-band DWDM (191.7–196.1 THz). Use C+L for >2× capacity.
  • Flex-grid: 75–100 GHz slots for 64–96 GBd carriers (400–800G); 37.5–50 GHz for ≤200G.
  • Superchannels (2–8 subcarriers) to hit 400–1.6T with minimal guard bands.
  • ROADMs: colorless/directionless/contentionless; plan 0–12.5 GHz guard bands per vendor.

• Modulation, reach (typical, clean terrestrial fiber)

  • 800G DP-64QAM: 80–120 km DCI; PS-16QAM 300–500 km.
  • 600G 64/32QAM: 100–250 km.
  • 400G ZR: 80–120 km over DWDM; ZR+: 300–800 km.
  • 400G DP-16QAM: 300–600 km; DP-8QAM: 700–1200 km.
  • 200G DP-8QAM: 800–1500 km; DP-QPSK: 1500–3000 km.
  • 100G DP-QPSK: 2000–5000 km (with Raman for upper end).
  • Subsea: QPSK/PS-QPSK with distributed Raman; design per span OSNR.

• Link budget (per span and end-to-end)

  • Fiber loss: 0.18–0.22 dB/km; span length 70–100 km typical.
  • Connectors/splices: 0.2–0.5 dB/span.
  • MUX/DEMUX: 2–4 dB each direction.
  • ROADM/WSS: 3–6 dB per pass; count passes end-to-end.
  • Amplifiers: EDFA gain ≈ span loss; NF 4.5–6 dB. Use hybrid/distributed Raman for OSNR/reach.
  • Launch power/coherent: −3 to +1 dBm/channel; total fiber power ≈ +19 to +22 dBm to limit nonlinearities.
  • OSNR (0.1 nm) targets at receiver (post-FEC design): ~11–12 dB (100G QPSK), 14–16 dB (200G 8QAM), 17–20 dB (400G 16QAM), 20–24+ dB (600–800G higher-order/PS).
  • Margins: 3–5 dB total (aging 1, repair 0.5–1, temperature 0.5, modeling 0.5, nonlinearity 0.5–1).

• Planning guidance

  • Metro/DCI: 400–800G, 75–100 GHz flex-grid, spans ≤80 km, EDFA only.
  • Regional/LH: 200–400G, Raman-assisted, spans 80–100 km.
  • Very long-haul/subsea: 100–200G QPSK/PS-QPSK, Raman, tighter span loss control.

• DOCSIS support: Full DOCSIS 3.1 today and DOCSIS 4.0 (FDX and ESD) ready.
• DOCSIS 3.1 capacity (per downstream service group): up to 2x192 MHz OFDM plus SC-QAM, ~5–6 Gbps PHY, ~3.5–4.5 Gbps usable. Upstream: up to 2x96 MHz OFDMA, ~1–2 Gbps usable (plant/SNR dependent).
• DOCSIS 4.0 capacity (per SG, plant dependent):
  • ESD (up to 1.8 GHz): ~8–10 Gbps down, ~3–6 Gbps up usable.
  • FDX (up to 1.2/1.8 GHz): near-symmetric up to ~8–10 Gbps down and ~6 Gbps up in ideal short-plant deployments.
• Channelization: up to 2x192 MHz OFDM (expandable with ESD), up to 2x96 MHz OFDMA (more with D4.0 profiles); advanced profile management (PNM/LDPC) for higher spectral efficiency.
• Uplinks/backhaul:
  • RPD/RMD: dual 10G SFP+ or single 25G SFP28, with LAG/MLAG support; 10G sufficient for dense D3.1, 25G recommended for D4.0 high-split/FDX.
  • Aggregation/Core: 40/100/400G Ethernet options; non-blocking spine-leaf fabrics.
• Scale:
  • Per service group: typically 64–256 modems; supports micro-splits to <64 homes passed for higher per-sub throughput.
  • Per node: multiple SGs per RPD/RMD; dynamic load balancing across OFDM profiles.
  • System: thousands of RPDs/RMDs and >100k cable modems under a single control domain; hierarchical controller supports multi-tenant, multi-region deployments.
• Resiliency/expansion: hitless software upgrade, N+1/N+N core redundancy, ISSU, automatic node add/split, and telemetry-driven capacity augmentation.
• Practical guidance: plan 10G per D3.1 service group pair or 25G per D4.0 node, target <200 CMs/SG for gig-tier penetration, and upgrade to 25G/100G aggregation where multi-SG D4.0 traffic converges.

High availability combines redundant resources with fast protection switching across layers:

• 1+1 protection: Two parallel, fully provisioned links or devices carry identical traffic simultaneously (active-active). The receiver selects the better signal (hitless/near-hitless switching). Implement via optical/SDH APS, Ethernet linear protection (G.8031), radio 1+1 HSB, duplicated optics/routers, and diverse power feeds. Pros: sub-50 ms recovery, no capacity loss on failover; Cons: doubles cost.

• 2+0 configuration: Two parallel links are bonded for capacity (active-active load sharing). If one fails, service continues at reduced throughput. Implement with LAG/LACP at L2, ECMP at L3, MPLS multipath, microwave 2+0 with XPIC for spectrum efficiency. Add QoS and admission control to shed non-critical traffic during a failure.

• Path diversity: Carry primary and backup over physically and logically disjoint paths (conduit, route, node, SRLG diversity). Use dual-homing to separate PoPs/IXPs/carriers, diverse last-mile entrances, separate power/cooling. Implement with MPLS-TE/SR with FRR, RSVP-TE or SRLG-aware constraints, ring protection (G.8032 ERPS), BGP PIC, multihoming (eBGP to diverse ASNs), EVPN multihoming/MC-LAG, and per-session BFD/OAM for fast detection.

Best practices:

• Target <50 ms failover using BFD/CFM/OOAM and hardware-assisted switching.
• Avoid fate-sharing: separate shelves, cards, power, software versions, maintenance windows.
• Validate with deterministic failure drills and telemetry.
• Align redundancy across layers (access, aggregation, core, DC) and across state (stateless services, session resumption).
• Document SRLGs, enforce policy via SDN/intent, and monitor protection state to prevent asymmetric routing or blackholes.

• Devices expose state/counters/config via SNMP (MIB OIDs), NETCONF/RESTCONF (YANG models), and streaming telemetry (gNMI/GRPC/Kafka/AMQP). They push events (SNMP traps/informs, syslog) and stream KPIs; NMS/OSS also polls (SNMP GET/BULK) or subscribes (NETCONF notifications, telemetry subscriptions).

• Southbound integration: protocol adapters/collectors terminate SNMP/NETCONF/telemetry, handle security (SNMPv3, TLS/SSH), session management, sampling rates, and buffering. Data is normalized to a canonical model (YANG/TMF/intent schemas), enriched with inventory/CMDB metadata (location, vendor, service, customer), and time-stamped.

• Event/metrics pipeline: a mediation layer and message bus (Kafka/NATS) fan out streams to:

  • Fault engine for alarms: trap/syslog/notification ingestion, thresholding, deduplication, aggregation, stateful correlation (topology- and service-aware), root-cause analysis, suppression, and ticketing escalation.
  • Performance analytics: time-series store (Prometheus/TSDB/ClickHouse), baselining, SLO/SLA calculations, anomaly detection/forecasting (ML), capacity planning.
  • Configuration/compliance: drift detection, intent validation, golden-config checks, remediation workflows via NETCONF/automation.

• NMS functions: topology discovery (LLDP/ARP/route), inventory reconciliation, visualization, dashboards, runbooks, RCA, northbound ITSM integration (INC/CHG), and closed-loop actions (auto-remediation) via orchestration.

• OSS integration: northbound APIs/webhooks publish alarms, KPIs, and topology to BSS/ITSM/data lake; OSS returns service models and customer impact maps to enrich correlation and prioritization.

• Telemetry vs SNMP/NETCONF: telemetry provides high-frequency, low-latency metrics for analytics; SNMP is used for lightweight polling and traps; NETCONF/YANG provides structured config/state and reliable notifications. NMS/OSS blend them, selecting per vendor/domain, and unify visibility, alarms, and analytics end-to-end.

• Establish target architecture: choose R-PHY vs R-MACPHY vs vCMTS; define CIN topology (leaf–spine), redundancy (MLAG/ECMP), and migration domains.
• Use open standards to ensure interoperability: CableLabs R-PHY/R-MACPHY specs, DOCSIS 3.1/4.0, R-DEPI/R-UEPI, IEEE 1588v2/SyncE, EVPN-VXLAN or MPLS, 802.1ag/Y.1731, NETCONF/YANG. Require multi-vendor interop testing and plugfests.
• Audit plant and optics: fiber characterization, optical budgets, legacy EDFAs, splitters, dispersion; node power/thermal and strand/housing capacity; RF actives passband and diplex readiness for high-split/mid-split/FDX plans.
• Design timing and sync first: PTP profiles, boundary/transparent clocks, GNSS and holdover strategy, SyncE where feasible; verify end-to-end time error and packet delay variation budgets.
• Engineer the CIN for deterministic transport: QoS with strict priority for PTP and DOCSIS flows, jumbo MTU for DEPI, lossless/L2 policing, multicast design (IGMP/EVPN) for video cores, fast convergence, per-service slicing.
• Security by default: ZTP with secure DHCP/TLS, RPD identity/PKI, MACsec or IPsec where required, 802.1X, segmentation (VRF/EVPN), device attestation and image signing.
• Migration plan: pilot nodes, overlay DAA alongside analog optics, phased service moves by service group, brownfield coexistence with EQAM/Video Core; clear rollback; maintenance windows and customer comms.
• RF alignment: node turn-up templates, tilt/leveling, MER/BER/FEC/KPIs, leakage compliance; harmonize profiles (OFDMA/OFDMA), upstream noise management.
• Automation and observability: model-driven config (YANG), CI/CD, telemetry/streaming gNMI, PNM, synthetic tests; golden images and staged rollouts.
• OSS/BSS integration: inventory, topology, alarms, ticketing, capacity models, IPAM/IPv6 plan.
• Supply chain and readiness: multi-vendor RPD/CCAP spares, firmware qualification, training and playbooks.
• Decommissioning: retire analog transmitters/EDFA paths, reclaim spectrum, update documentation and as-builts; post-mortems and KPI gates between phases.
