A fiber raceway is a dedicated, enclosed or semi-enclosed pathway system designed to route, organize, and protect optical fiber cables from patch panels, ODFs, and equipment to distribution points. Unlike general cable trays, fiber raceways maintain bend-radius control and separation from power and copper to preserve optical performance and reduce attenuation.

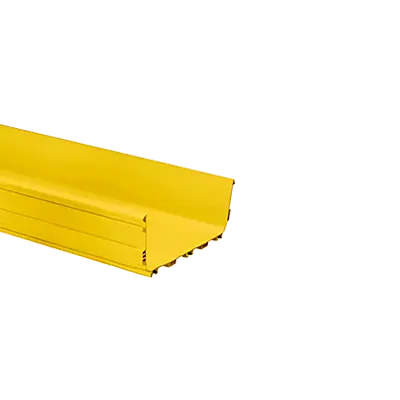

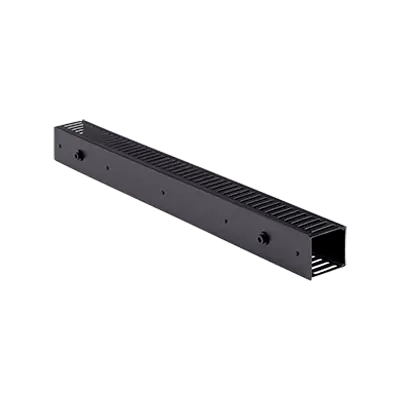

Typical constructions use nonmetallic, low-smoke flame-retardant plastics (e.g., PVC/PC blends or UL94 V-0 rated polymers) in modular sections: straight ducts, elbows, tees, drops, reducers, end caps, and junctions, plus snap-on covers and support brackets. Sizes range from small drop ducts to wide troughs for high-density backbones. Accessories include radius limiters, splice/patch field transitions, and mounting hardware for racks, overhead ladder racks, or ceilings.

Primary uses:

• Data centers: overhead routing between fiber distribution frames, spine–leaf switches, and cross-connects.
• Central offices/telecom rooms: managing high-count cables to ODFs without microbending.
• Enterprise/MDF–IDF pathways: segregating fiber from copper and power.
• FTTH/FTTx headends and COs: orderly aggregation of feeder, distribution, and drop fibers.

Benefits:

• Protects fibers from crush, abrasion, and improper bends.
• Improves airflow by moving cables off equipment fronts.
• Simplifies moves, adds, and changes via accessible, labeled paths.
• Enhances reliability and compliance with bend-radius and separation best practices (e.g., TIA-568, TIA-569, ISO/IEC 11801 guidance).
• Scales with growth through modular expansion.

In short, a fiber raceway provides a controlled, scalable physical infrastructure to safely route and manage optical fiber cabling.

• Identify pathway type: conduit/innerduct vs cable tray/ladder vs surface raceway. Use the governing standard: NEC Chapter 9 (conduit), TIA-569-D (telecom pathways), NEMA VE 2 (tray).
• Gather cable data: outside diameter (OD), minimum bend radius (typically 10×OD installed, 15×OD under tension; check manufacturer), maximum pull tension and sidewall pressure (commonly ≤50 lb/ft for fiber).
• Set fill limit:
  • Conduit/innerduct: use 40% maximum fill for three-or-more cables (NEC Ch. 9, Table 1). For single cable you may use up to 53%, but 40% is recommended for future capacity.
  • Cable tray: limit to 50% of usable cross-sectional area for comms; target 40–50% to allow adds/moves.
• Calculate required area:
  • Per cable area = π × (OD/2)^2.
  • Sum all cable areas; divide by allowed fill fraction to get minimum raceway area.
  • Select the next larger trade size whose internal area ≥ required.
• Check jam ratio (conduit with three cables): JR = (conduit I.D.) / (cable O.D.). Avoid 2.8–3.2. Choose size so JR <2.8 or >3.2, or use a larger conduit or different cable mix/innerduct.
• Verify bend radius: raceway fittings and pull boxes must accommodate the largest cable bend radius; increase size or use long-radius sweeps as needed.
• Verify pull path: keep sidewall pressure within cable limit across bends; add pull boxes if needed. Limit segment length per manufacturer (e.g., 100–200 ft with bends).
• Plan spare capacity: design for 25–50% growth.
• Separation: use dedicated innerducts for fiber in shared conduits; maintain code-required separation from power.
• Example: Four 0.35 in OD cables → each area ≈0.096 in²; sum ≈0.384 in². At 40% fill, conduit area needed ≈0.96 in²; 1 in EMT (≈0.836 in²) is too small; 1-1/4 in EMT (≈1.496 in²) works and avoids jam ratio issues.

• Minimum bend radius (unless manufacturer specifies otherwise):

  • Distribution/loose-tube/non-armored cable: ≥20× cable OD while pulling (dynamic); ≥10× OD after installation (static).
  • Armored cable: typically ≥15× OD dynamic; ≥10× OD static.
  • Patch cords/jumpers: ≥10× OD dynamic; ≥5× OD static.
  • Bend‑insensitive (G.657) can allow tighter bends per spec, but default to the above if unsure.
  • Never exceed the smallest radius recommended for any component (cable, connector, tray).

• Raceway routing best practices:

  • Plan routes to minimize bends; use long-radius sweeps. Keep total bend angle between pull points ≤360°; ≤270° preferred for fiber.
  • Size conduit/innerduct to keep fill ≤40% initially (plan capacity for growth). Use dedicated innerducts for protection and segregation.
  • Maintain bend radii at all transitions, entries, and in trays; use radius guides and bushings; avoid sharp edges.
  • Pull with a swivel and a proper pulling eye; do not exceed rated pull tension; use approved lubricant.
  • Provide slack/service loops: 1–2 m at equipment and splice points (or ~5–10% of run length), coiled at or above minimum radius.
  • Support and secure at manufacturer-recommended intervals; avoid crushing loads and tight cable ties—use wide, velcro-style straps.
  • Separate from power cabling where possible; use barriers or separate raceways to reduce risk and future cross-work damage.
  • Control twist and torsion; avoid kinks; do not step on or roll equipment over cable.
  • Observe temperature limits during install and operation.
  • Label both ends and intermediate pull points; document path, lengths, and test results.
  • After install, inspect all bends, verify radii, and test (OTDR/attenuation) before turnover.

Use the highest fire rating required by the space and code. Quick guide:

• Plenum (air-handling spaces above ceilings/under floors): CMP (copper) / OFNP (fiber). UL 910/NFPA 262. Can substitute everywhere below (riser/general).
• Riser (vertical shafts/floor-to-floor): CMR (copper) / OFNR (fiber). UL 1666. Not allowed in plenums.
• General purpose/office horizontal: CM/CMG (copper) / OFN (fiber). Not allowed in risers or plenums.
• LSZH (low smoke zero halogen): Use where required by owner, EU/UK, transport, tunnels, ships, or mission-critical life-safety. Pair with local flame rating: • EU/UK: CPR classes B2ca/Cca/Dca (with s, d, a subratings), halogen-free per IEC 60754, low smoke IEC 61034, flame IEC 60332.
  • US: LSZH is not a NEC fire rating; if used, also ensure CMP/CMR compliance or install in metal conduit.
• Canada: FT6 (plenum) / FT4 (riser) / FT1 (general).
• Outdoor: UV-resistant PE jacket; “outdoor-rated.” For aerial: messenger. For direct burial: gel-filled, water-blocking, armored.
• Outdoor-to-indoor transition: Use plenum/riser-rated within 15 m (50 ft) of entry or terminate in a listed enclosure/firestop per NEC.
• Conduit exception: Lower ratings may be permitted in metallic conduit per local AHJ; verify.
• High PoE (802.3bt): Use 90°C-rated, larger gauge (22–23 AWG) and higher bundle-rated cables; prefer CMP in dense bundles.
• Special environments: Data centers, hospitals, airports often mandate CMP or LSZH+CPR. Rail/ship/offshore: EN 45545, IEC 60092, DNV/LR approvals.

Always confirm with local code: US NEC (NFPA 70), building/fire code, AHJ rulings, and project specifications.

• With copper communications cabling (UTP/STP, coax): Yes. Fiber may share the same raceway, cable tray, or pathway with other communications cables, provided pathway fill limits, bend-radius, and pull-tension specs are met. Separation from copper data cables isn’t required by code; many designers still segregate for management.

• With power cables (lighting, receptacle, Class 1, non–power-limited fire alarm): Generally no, unless properly separated. Per NEC Article 770, optical fiber cables or raceways shall not occupy the same raceway, box, or compartment with power conductors unless:

  • A listed permanent barrier or factory-divided multi-compartment raceway/tray provides physical separation; or
  • The installation meets specific exceptions for “functionally associated” circuits as permitted by code (rare in typical IT pathways).

• Open ceilings/parallel runs: If not in the same raceway/tray, maintain code/standard separations from power (per NEC/TIA-569), increasing distance with higher power or unshielded conditions. Typical design practice: 2–12 inches minimum depending on power class, pathway type, and shielding; more for VFD or MV.

• Plenums: Use plenum-rated types and still apply the power separation rules above.

• Conductive optical fiber (with metallic members): Bond/ground per manufacturer/NEC and still follow the same separation/barrier rules from power circuits.

Bottom line: Sharing with copper comms is allowed; with power, use a listed physical barrier or separate pathways and maintain required separation distances.

• TIA/EIA (ANSI/TIA):

  • TIA-569-D: Pathways and spaces (clearances, fill, bend radius, separation).
  • TIA-568.3-E: Optical fiber cabling (installation practices; bend radius, pulling tension).
  • TIA-758-B: Outside plant (OSP) pathways/structures.
  • TIA-942-B: Data center pathways (tray types, densities).
  • TIA-606-C: Administration/labeling of raceways and cabling.
  • TIA-607-D: Bonding and grounding for ICT pathways.
  • TIA-526 series: Field testing of optical fiber.

• NFPA/NEC (NFPA 70):

  • Article 770: Optical fiber cables and raceways (listing, fire-rating, support).
  • Article 300: General wiring methods (routing, protection).
  • Chapter 3 raceways as applicable to comms use:
    • 342 IMC, 344 RMC, 352 Rigid PVC, 353 HDPE, 355 RTRC, 358 EMT, 362 ENT, 376/378/386 wireways, 392 Cable trays.
  • Article 725/800: Power/communications separation and sharing of pathways where applicable.
  • Article 300.22: Plenum/air-handling spaces.
  • NFPA 75/76: IT/telecom equipment rooms (fire protection considerations).

• UL/Listing:

  • UL 2024: Optical Fiber Cable Routing Assemblies (ladder/tray/duct systems).
  • UL 2024A: Communications Raceways.
  • UL 1651: Optical fiber cable; OFNP/OFNR/OFN listings (use with raceway plenum/riser/general-use limits).
  • UL 651/651A: Rigid PVC/encased PVC conduit; UL 1660: ENT; UL 870: wireways; UL 568/569 for trays (as applicable).
  • UL 2043: Heat/smoke for plenum-installed nonmetallic devices.

• NEMA/ASTM:

  • NEMA TC-2, TC-6/8, TC-14: PVC conduit/duct; NEMA FG 1: fiberglass.
  • ASTM E84/NFPA 262: Flame/smoke tests informing plenum/riser ratings.

• International/Regional:

  • ISO/IEC 11801 series: Generic cabling (pathways guidance).
  • ISO/IEC 14763-2/-3: Planning/installation and testing.
  • EN 50174 series: European installation and pathways.
  • BICSI TDMM, BICSI 002 (data centers), BICSI 005 (OSP): Best practices for pathway design and installation.

Accessories:

• Splice/connector plates (straight, adjustable, expansion), bonding jumpers.

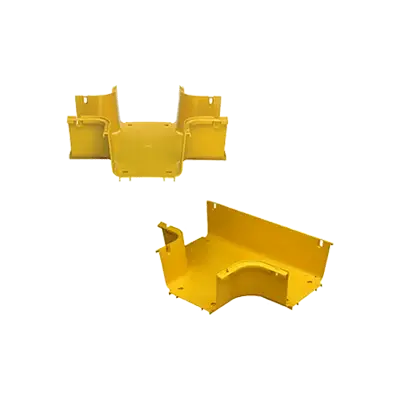

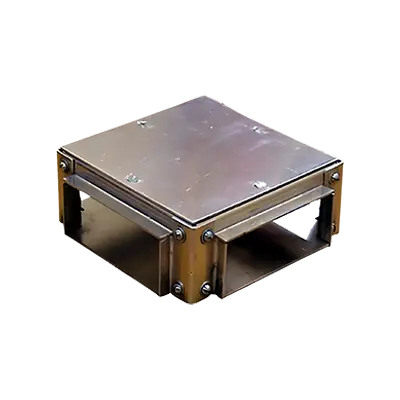

• Tees, crosses, horizontal/vertical elbows, reducers.

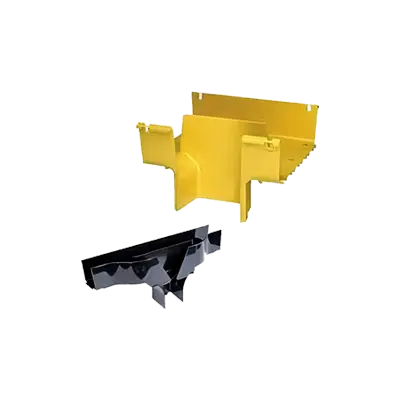

• Drop-out/waterfall fittings, radius control saddles.
• Dividers/barriers, end caps, bushings/grommets, cable retainers/cleats.

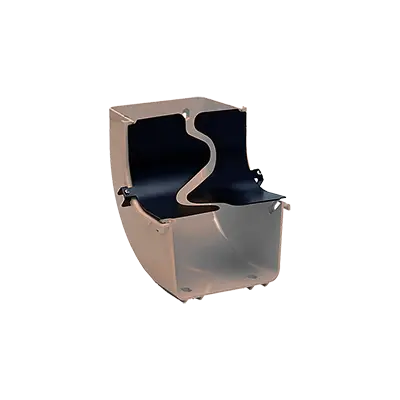

• Covers (solid, ventilated, drip‑shield, EMI/RFI), hold‑downs/hinges.

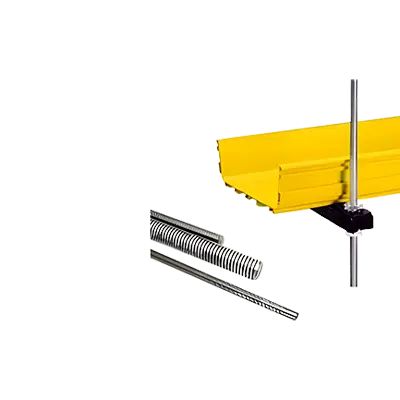

• Supports: trapeze hangers, cantilever/wall brackets, center‑hung, stand‑off, seismic bracing.

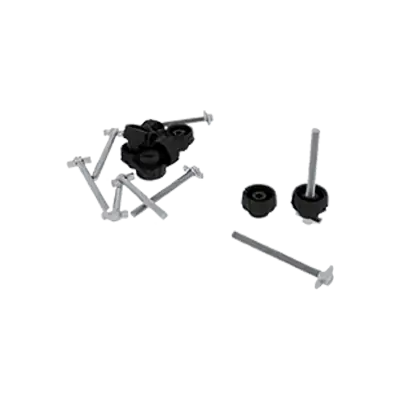

• Fasteners: corrosion‑resistant hardware, spring nuts, vibration‑resistant locknuts.

Joints:

• Use manufacturer splice plates; clean, align, and torque to spec.
• Provide bonding jumpers at each splice unless UL-listed conductive splices are used.
• Install expansion splices with calculated gap based on temperature delta and tray material; set fixed anchors and guide supports as per NEMA VE 2.

Drops:

• Use radius drop-outs/waterfalls; never sharp edges.
• Maintain cable minimum bend radius (power ≥8–12× OD; data/fiber per manufacturer).
• Add supports within 300–600 mm of drop points; bundle/cleat as needed.

Covers:

• Use solid or drip‑shield outdoors, wet, dusty, or falling‑objects areas; ventilated where heat dissipation is needed.
• Secure with hold‑downs at intervals per manufacturer and at all ends/turns; use hinged/quick‑release in frequent‑access runs.
• Use metallic shielding covers for EMI/RFI environments; bond covers.

Support spacing (typical, confirm with manufacturer/load):

• Ladder/trough: 1.8–3.0 m span; common 2.4 m.
• Wire mesh/basket: 1.2–1.5 m.
• Vertical runs: every 1.5–2.0 m.
• Place supports within 450–600 mm of bends, tees, drops, equipment terminations, and expansion joints.
• Add intermediate supports for heavy cable fills, large copper cables, or high short‑circuit cleating.

General:

• Follow NEMA VE 2/NEC or local codes; maintain separation per system class; ensure corrosion protection and seismic restraints where required.
