The main components of a furnace control board include: 1. **Microcontroller/Processor**: Acts as the brain of the control board, processing inputs and executing control algorithms to manage furnace operations. 2. **Relays**: Electrically operated switches that control high-power components like the blower motor, igniter, and gas valve based on signals from the microcontroller. 3. **Transformers**: Step down the voltage from the main power supply to a lower voltage suitable for the control board and its components. 4. **Capacitors**: Store and release electrical energy to stabilize voltage and power supply, ensuring smooth operation of the control board. 5. **Resistors**: Limit and regulate the flow of electrical current to various components, protecting them from damage due to excessive current. 6. **Diodes**: Allow current to flow in one direction, preventing backflow that could damage components or disrupt operations. 7. **Thermistors**: Temperature-sensitive resistors that provide temperature readings to the microcontroller for regulating heating cycles. 8. **Connectors and Terminals**: Facilitate connections between the control board and other furnace components, such as sensors, motors, and power supply. 9. **Printed Circuit Board (PCB)**: The physical platform that holds and connects all electronic components, providing pathways for electrical signals. 10. **Diagnostic LEDs**: Provide visual indicators of the board’s status and error codes, aiding in troubleshooting and maintenance. 11. **Fuses**: Protect the control board and connected components from overcurrent by breaking the circuit if current exceeds safe levels. 12. **Sensors**: Include flame sensors, limit switches, and pressure switches that provide critical feedback to the control board for safe and efficient operation. These components work together to ensure the furnace operates safely, efficiently, and reliably, responding to user inputs and environmental conditions.

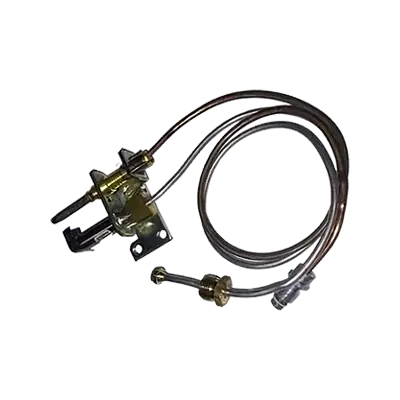

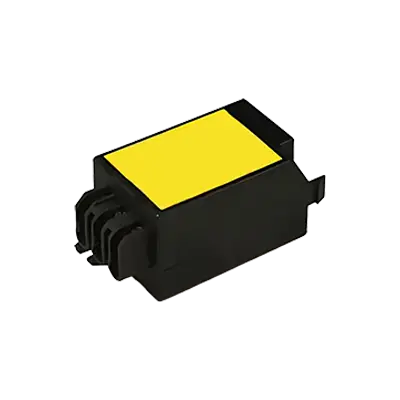

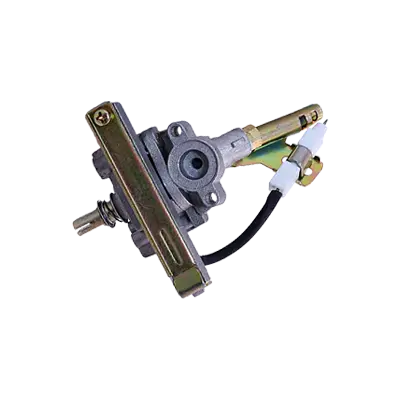

Ignition controls in a heating system manage the process of igniting the fuel to produce heat. They ensure safe and efficient operation by controlling the sequence of events that lead to ignition. Here's how they work: 1. **Thermostat Signal**: The process begins when the thermostat detects a drop in temperature and sends a signal to the ignition control module to start the heating cycle. 2. **Safety Checks**: Before ignition, the system performs safety checks. It ensures that the combustion chamber is free of unburned fuel and that all safety devices, like limit switches and pressure sensors, are in the correct state. 3. **Inducer Motor Activation**: The inducer motor is activated to clear any residual gases from the combustion chamber and to ensure proper airflow for combustion. 4. **Ignition Sequence**: The ignition control module initiates the ignition sequence. There are two main types of ignition systems: - **Standing Pilot**: A small, continuously burning flame ignites the main burner when needed. - **Intermittent/Direct Spark Ignition**: An electric spark or hot surface igniter lights the burner only when heat is required. 5. **Gas Valve Operation**: Once the igniter is ready, the control module opens the gas valve, allowing gas to flow to the burner. 6. **Flame Detection**: The system uses a flame sensor to confirm ignition. If the flame is not detected within a specific time, the system shuts off the gas valve to prevent gas buildup and retries the ignition process. 7. **Heating Cycle**: Once the flame is established, the system continues to monitor and adjust the burner operation to maintain the desired temperature until the thermostat signal is satisfied. 8. **Shutdown**: After reaching the set temperature, the system shuts down the burner and inducer motor, completing the cycle. These controls ensure safety, efficiency, and reliability in heating systems.

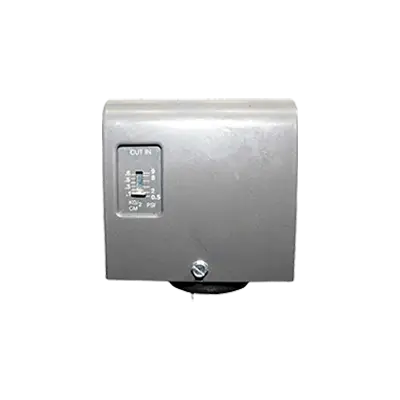

The fan and limit controls in an HVAC system are crucial for ensuring safe and efficient operation. The fan control regulates the blower fan, which circulates air through the system. It ensures the fan operates only when necessary, typically turning on when the furnace reaches a certain temperature and off when it cools down. This prevents the fan from running continuously, conserving energy and reducing wear. The limit control, often part of a combination fan-limit switch, serves as a safety mechanism. It monitors the temperature within the furnace or air handler. If the temperature exceeds a preset limit, the limit control shuts off the burner to prevent overheating, which could damage the system or pose a fire hazard. It also prevents the system from operating if the temperature is too low, which could indicate a malfunction. Together, these controls maintain optimal performance, enhance energy efficiency, and ensure safety by preventing overheating and unnecessary fan operation.

Hydronic heating controls differ from other heating controls primarily in their management of water-based systems rather than air-based systems. In hydronic heating, water is heated in a boiler and circulated through pipes to radiators or underfloor systems, providing radiant heat. The controls for these systems are specifically designed to manage water temperature, flow, and distribution efficiently. 1. **Temperature Regulation**: Hydronic systems use thermostats and sensors to monitor and adjust the water temperature, ensuring optimal heat delivery. Unlike forced-air systems that regulate air temperature, hydronic controls focus on maintaining consistent water temperature. 2. **Zoning Capabilities**: Hydronic controls often allow for more precise zoning. Each zone can be independently controlled, providing tailored heating to different areas. This is achieved through zone valves or pumps controlled by individual thermostats, offering greater energy efficiency and comfort. 3. **Flow Control**: These systems use pumps and valves to control the flow of water. Variable speed pumps and modulating valves adjust the flow rate based on demand, unlike forced-air systems that rely on fans and dampers. 4. **Boiler Management**: Hydronic controls include features for managing boiler operation, such as modulating burners and outdoor reset controls, which adjust the boiler's output based on outdoor temperatures to enhance efficiency. 5. **Integration with Renewable Energy**: Hydronic systems can easily integrate with solar thermal panels or geothermal systems, and the controls are designed to manage these alternative energy sources effectively. 6. **Quiet Operation**: Unlike forced-air systems that can be noisy due to fans and ductwork, hydronic systems are quieter, and the controls are designed to maintain this low-noise operation. Overall, hydronic heating controls are specialized for managing water-based heating systems, focusing on efficiency, comfort, and integration with modern energy solutions.

Common issues with heating control systems include: 1. **Thermostat Malfunctions**: Incorrect temperature readings or unresponsive controls. Fix by recalibrating, replacing batteries, or upgrading to a programmable thermostat. 2. **Sensor Failures**: Faulty sensors can cause inaccurate temperature regulation. Replace or recalibrate sensors to ensure accurate readings. 3. **Wiring Problems**: Loose or damaged wires can disrupt signals. Inspect and repair or replace faulty wiring to restore proper function. 4. **Valve Issues**: Stuck or malfunctioning valves can prevent proper flow of heat. Clean, lubricate, or replace valves to ensure they open and close correctly. 5. **Boiler or Furnace Problems**: Inefficient operation or failure to start. Regular maintenance, cleaning, and timely replacement of worn parts can prevent these issues. 6. **Airflow Blockages**: Obstructed vents or filters reduce efficiency. Regularly clean or replace filters and ensure vents are unobstructed. 7. **Control Board Failures**: Malfunctioning control boards can disrupt system operations. Diagnose and replace faulty boards to restore control. 8. **Inadequate Insulation**: Poor insulation leads to heat loss. Improve insulation in walls, ceilings, and around windows and doors to enhance efficiency. 9. **Zoning Issues**: Uneven heating due to zoning problems. Adjust or repair zone controls to ensure even distribution of heat. 10. **Software Glitches**: Bugs in smart systems can cause erratic behavior. Update software or reset the system to resolve glitches. Regular maintenance, timely repairs, and upgrades to modern systems can prevent many of these issues and ensure efficient operation of heating control systems.

1. **Power Supply Check**: Ensure the furnace is receiving power. Check the circuit breaker and fuse box for any tripped breakers or blown fuses. 2. **Thermostat Settings**: Verify that the thermostat is set to the correct mode (heat) and temperature. Replace batteries if necessary. 3. **Inspect Control Board**: Look for visible signs of damage on the control board, such as burnt components or broken traces. 4. **Error Codes**: If the furnace has a diagnostic LED, note any error codes and refer to the furnace manual for their meanings. 5. **Wiring Inspection**: Check all wiring connections to the control board for loose or corroded connections. Tighten or clean as needed. 6. **Safety Switches**: Ensure all safety switches, such as the door switch and limit switch, are functioning properly and not tripped. 7. **Blower Motor**: Test the blower motor by bypassing the control board to see if it runs. If it does, the issue may be with the control board. 8. **Voltage Testing**: Use a multimeter to test for proper voltage at the control board. Compare readings with the furnace’s specifications. 9. **Component Testing**: Test individual components connected to the control board, such as the igniter, flame sensor, and gas valve, for proper operation. 10. **Reset Control Board**: Turn off power to the furnace, wait a few minutes, and then restore power to reset the control board. 11. **Professional Help**: If troubleshooting does not resolve the issue, contact a professional HVAC technician for further diagnosis and repair.

Upgrading to a smart thermostat offers several benefits for your HVAC system: 1. **Energy Efficiency**: Smart thermostats optimize heating and cooling schedules based on your habits, reducing energy consumption and lowering utility bills. 2. **Remote Access**: Control your HVAC system from anywhere using a smartphone app, allowing you to adjust settings on the go for comfort and efficiency. 3. **Learning Capabilities**: Many smart thermostats learn your schedule and preferences over time, automatically adjusting temperatures for optimal comfort and efficiency. 4. **Zoning Capabilities**: Some models allow for zoning, enabling different temperatures in different areas of your home, enhancing comfort and efficiency. 5. **Integration with Smart Home Systems**: Smart thermostats can integrate with other smart home devices, such as voice assistants, for seamless control and automation. 6. **Energy Usage Reports**: Access detailed reports on energy usage, helping you understand consumption patterns and identify opportunities for savings. 7. **Environmental Benefits**: By reducing energy consumption, smart thermostats contribute to a lower carbon footprint, supporting environmental sustainability. 8. **Alerts and Maintenance Reminders**: Receive alerts for system issues or maintenance reminders, helping to ensure your HVAC system runs efficiently and prolonging its lifespan. 9. **Enhanced Comfort**: Maintain consistent and comfortable temperatures by automatically adjusting settings based on occupancy and weather conditions. 10. **Cost Savings**: The initial investment in a smart thermostat can be offset by long-term savings on energy bills, making it a cost-effective upgrade. 11. **User-Friendly Interface**: Intuitive interfaces make it easy to set schedules, adjust temperatures, and access features, even for those not tech-savvy. 12. **Rebates and Incentives**: Many utility companies offer rebates or incentives for installing energy-efficient smart thermostats, reducing upfront costs.
